Fig. 3

ID
ZDB-IMAGE-081021-13
Source
Figures for Leal et al., 2008
Figure Caption

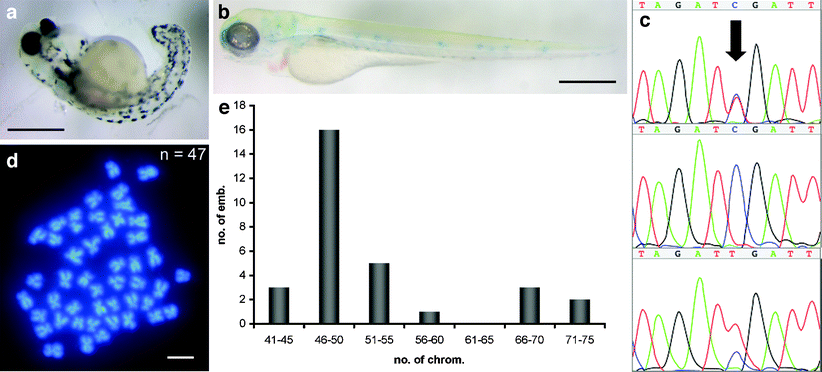

Fig. 3 Progeny of mlh1 -/- males. a Severely malformed 3-day-old embryo from a cross of a mlh1 -/- male with a wild-type female. b Unpigmented 3-day-old embryo from a cross of a mlh1 -/- male with an albino female, showing that the wild-type paternal allele of the albino gene has been lost in this embryo. The weak blue staining is caused by the methylene-blue-containing medium. c Sequence traces of the polymorphism in mlh1 (arrow). The paternal allele (mutant) is a T, and the maternal allele (wild-type) is a C. The sequence peak areas show quantitatively that some progeny of mutant males have one chromosomal copy of each parent (top), whereas others have only the maternal allele (middle) or two copies of the paternal allele (bottom that some progeny of mutant males have one chromosomal copy of each parent (top), whereas others have only the ma). d Embryos have chromosome numbers different from the normal number of 50, such as this example of 47 chromosomes. e Distribution of chromosome numbers in embryos (emb.) from mlh1 -/- males (30 embryos in total). Bars 500 μm (a, b), 1 μm (d)
