Fig. S5

ID
ZDB-IMAGE-080828-78
Genes
Source
Figures for Yanicostas et al., 2008
Figure Caption

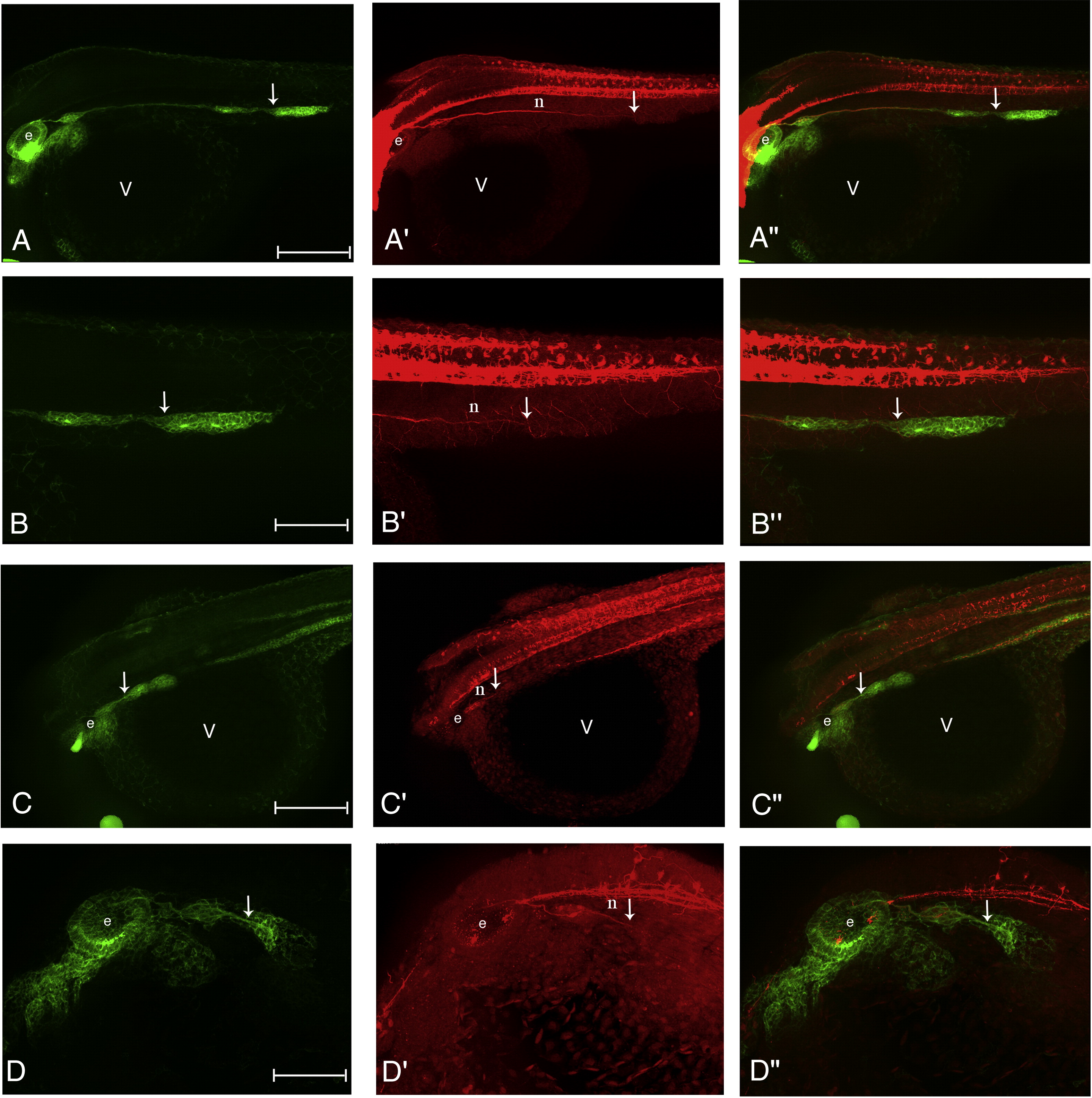

Fig. S5 Kal1a inactivation compromises terminal elongation of the PLLP nerve within the migrating primordium. Acetylated β-tubulin immunostaining of the PLLP nerve (A′, B′, C′ and D′) in ClaudinB::GFP embryos (A, B) and following injection of MO kal1a (0.5 mM) (C, D). Magnified views of the primordium shown in A (B), A′ (B′), A″ (B″), C (D), C′ (D′) and C″ (D″). Merge images of the photographs shown in A and A′ (A″), B and B′ (B″), C and C′ (C″) and D and D′ (D″). Arrows indicate the distal edge of the PLLP nerve. v: vitellus, e: ear.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 320(2), Yanicostas, C., Ernest, S., Dayraud, C., Petit, C., and Soussi-Yanicostas, N., Essential requirement for zebrafish anosmin-1a in the migration of the posterior lateral line primordium, 469-479, Copyright (2008) with permission from Elsevier. Full text @ Dev. Biol.
