Fig. 4

ID
ZDB-IMAGE-080828-4
Source
Figures for Vervenne et al., 2008
Figure Caption

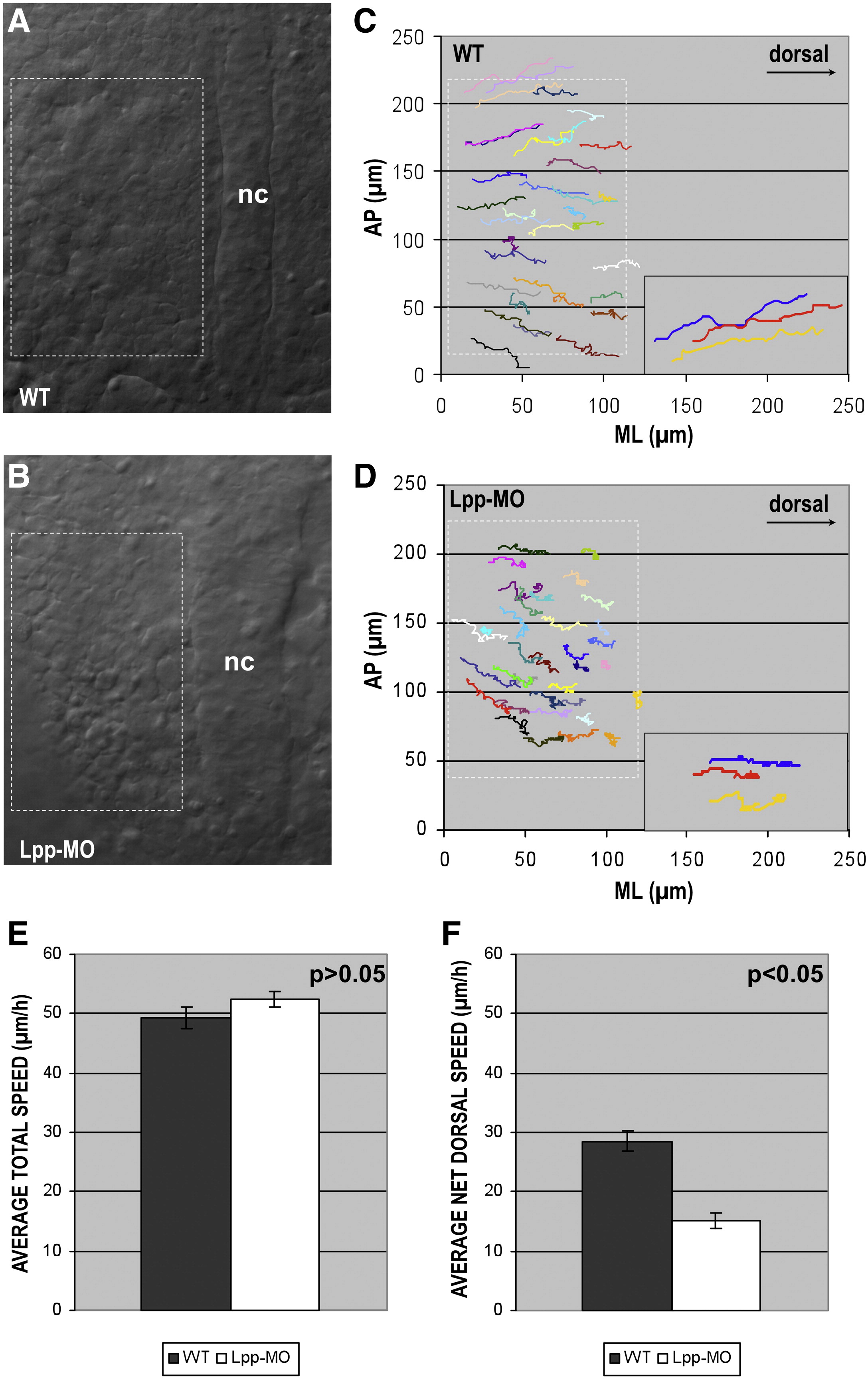

Fig. 4 Lpp function is required for efficient dorsal convergence. Dorsal views of (A) wild-type (WT) and (B) Lpp-MO/ATG (5 ng) injected embryos at tailbud stage (boxes highlight the paraxial region, which was the focus of the migration analysis). (C, D) Cell tracks of paraxial cells from (C) wild-type and (D) Lpp-MO/ATG injected embryos extracted from Normarski time-lapse images. Each graph shows representative data obtained from individual embryos. Insets are enlarged tracks of three representative cells. AP, anterior–posterior axis; ML, mediolateral axis. (E) No significant (p = 0.19) difference in total speed (μm/h) could be detected between wild-type and Lpp-MO/ATG injected embryos, (F) whereas net dorsal speed after Lpp-MO/ATG injection was significantly (p = 1.1 x 10- 8) reduced. (E, F) Graphs represent average data from 60 cells from 2 embryos for each condition; error bars represent standard errors of the mean.
