Fig. S3

ID
ZDB-IMAGE-080604-79
Genes
Source
Figures for Peri et al., 2008
Figure Caption

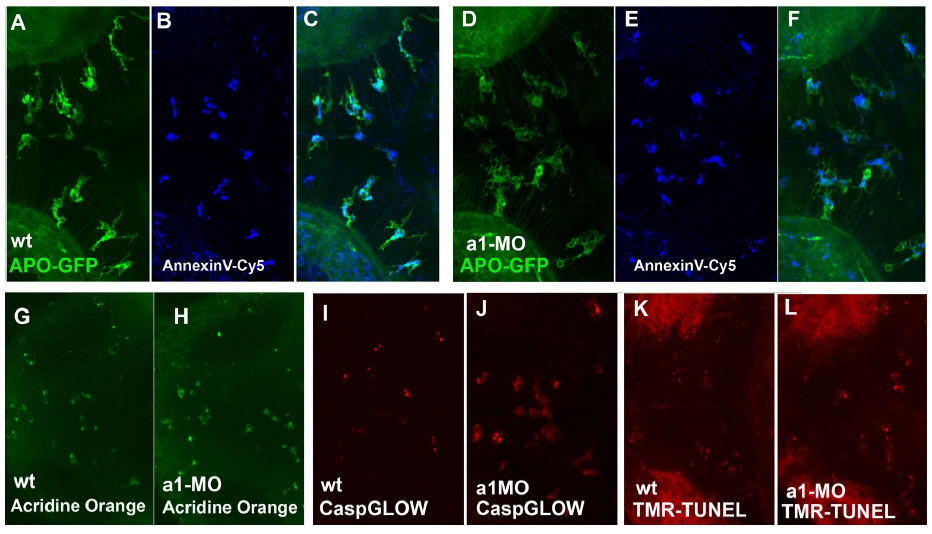

Fig. S3 Analysis of apoptosis in wild-type and morphant embryos
A-L Dorsal view of 3-days old zebrafish brains. A-C AnnexinV-Cy5 staining (B) in a APO-GFP (A) wild-type embryo. D-F AnnexinV-Cy5 staining (E) in a APO-GFP (D) morphant embryos. In both there is perfect colocalization between Annexin staining and the APO-E-GFP microglia. G-H Acridine Orange staining in wildtype (G) and a1-MO (H) embryos. I-J CaspGlow staining in wild-type (I) and a1- MO (J) embryos. K-L TMR-TUNEL staining in wild-type (K) and a1-MO (L) embryos.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cell, 133(5), Peri, F., and Nüsslein-Volhard, C., Live Imaging of Neuronal Degradation by Microglia Reveals a Role for v0-ATPase a1 in Phagosomal Fusion In Vivo, 916-927, Copyright (2008) with permission from Elsevier. Full text @ Cell
