Fig. 9

ID
ZDB-IMAGE-070620-10
Source
Figures for Yeyati et al., 2007
Figure Caption

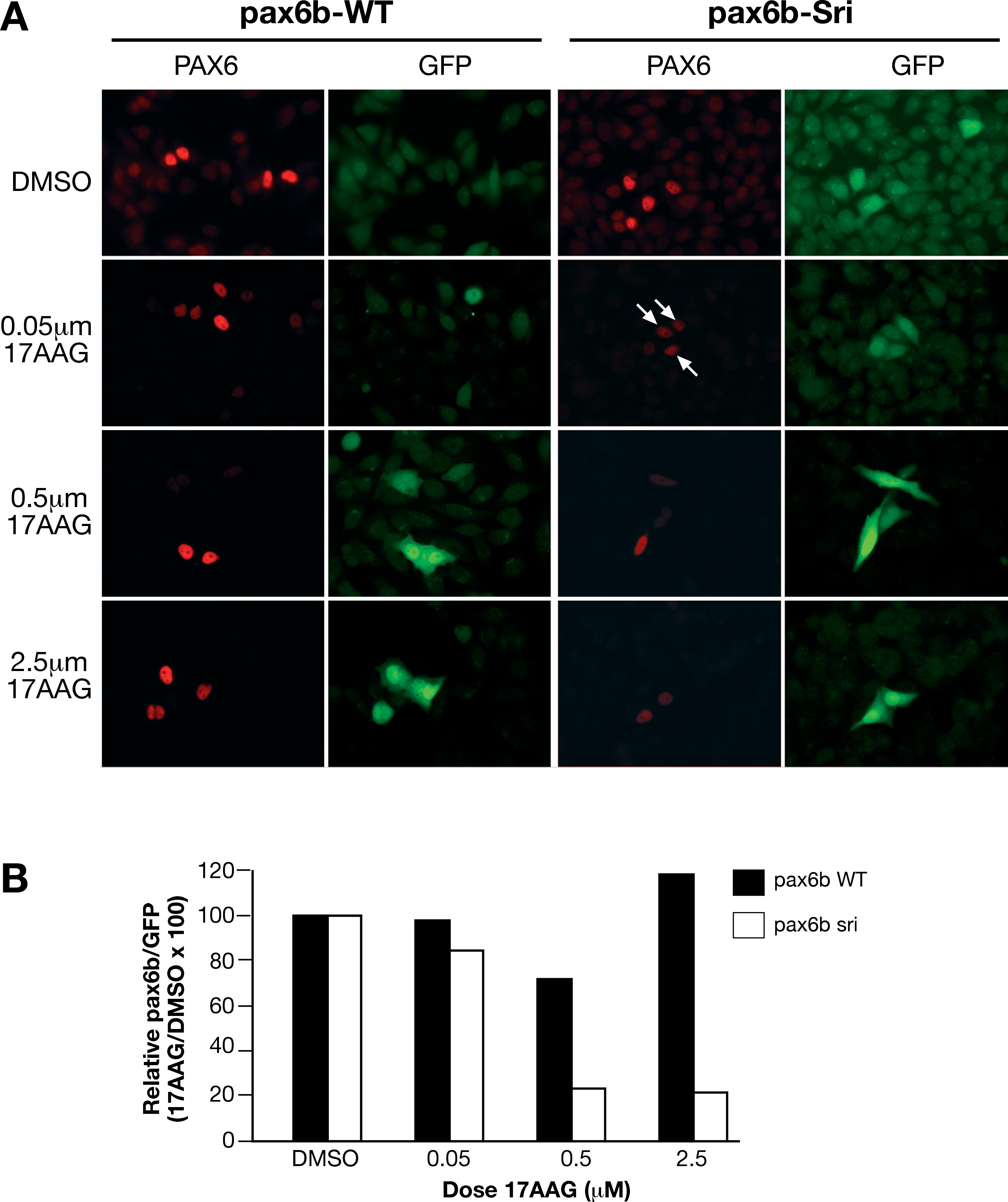

Fig. 9 Differential Sensitivity of WT and sri Mutant Pax6b Protein to Hsp90 Inhibition. Cells were cotransfected with either WT or sri mutant paxb cDNA and GFP reporter. (A) Representative field of HeLa cells transfected with Pax6b-WT or Pax6b-sri mutant immunohistochemically assessed for Pax6b protein levels (red) or control GFP frequency (green). Effects of treatment with different concentrations of 17AAG are shown compared with DMSO control. (B) Relative ratio of Pax6b positive (red cells) to GFP positive (green) cells for each treatment compared to the relevant DMSO control. The figures show one representative experiment from three independent experiments with similar results.
