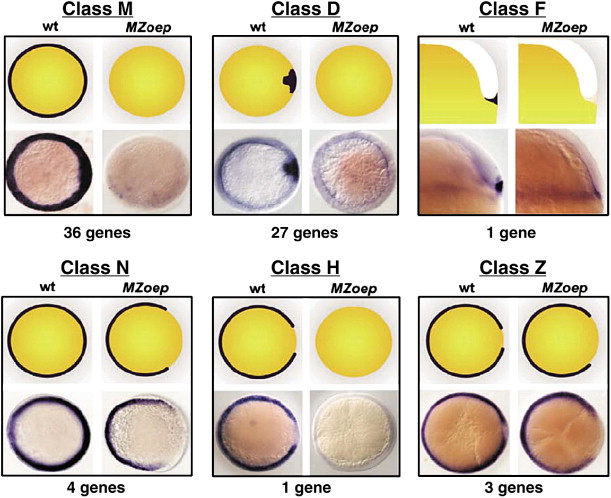

Fig. 2 Diverse expression patterns of Nodal-regulated genes. All 72 Nodal-regulated genes are grouped into six classes based on dorsal–ventral expression pattern at the beginning of gastrulation. The top two images of each cluster are cartoon representations of the expression pattern, the bottom two are whole-mount ISH. Genotypes are indicated. All images are animal pole views except class F, which is a lateral view.
