Fig. 3

ID
ZDB-IMAGE-070418-2
Genes
Source
Figures for Ott et al., 2007
Figure Caption

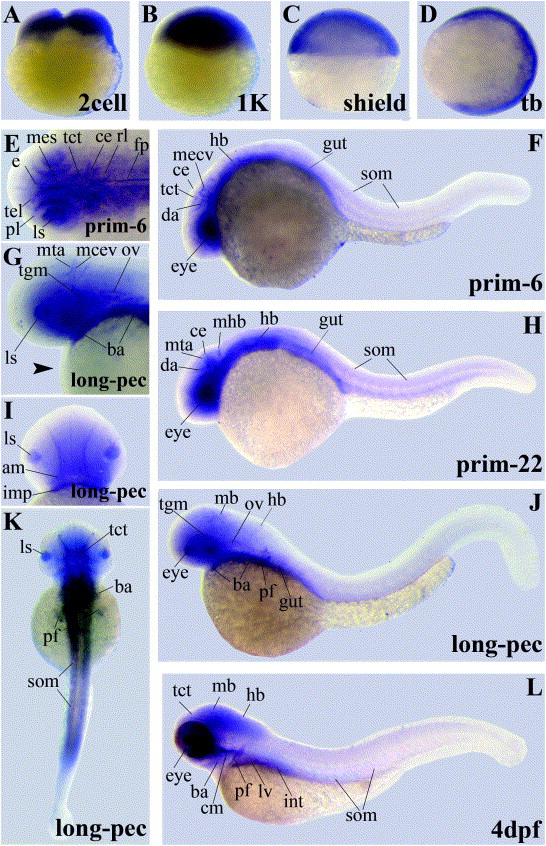

Fig. 3 Gene expression patterns of LIMK1 variants encoding the LIM domains. Abbreviations used are: adductor mandibulae (am), branchial arches (ba), cerebellum (ce), cephalic musculature (cm), dorsal aorta (da), epithalamus (e), floorplate (fp), hindbrain (hb), intermandibularis posterior (imp), intestine (int), lens (ls), liver (lv), midbrain (mb), midcerebral vein (mecv), mesencephalon (mes), midbrain–hindbrain-boundary (mhb), metencephalic artery (mta), otic vesicle (ov), pectoral fin buds (pf), proliferative cell layer (pl), rhombencephalon (rl), somites (som), tectum (tct), tegmentum (tgm), telencephalon (tel).

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Gene expression patterns : GEP, 7(5), Ott, E.B., Te Velthuis, A.J., and Bagowski, C.P., Comparative analysis of splice form-specific expression of LIM Kinases during zebrafish development, 620-629, Copyright (2007) with permission from Elsevier. Full text @ Gene Expr. Patterns
