FIGURE SUMMARY
Title

Astragalus polysaccharide protects against cardiac injury in a tnnt2a mutant zebrafish model of dilated cardiomyopathy

Authors
Zhou, C., Zhao, H., Peng, L., Dong, Y., Wu, Q., Wang, X., Xu, Y., Wang, Y.
Source
Full text @ BMC Complement Med Ther
Fig. 1

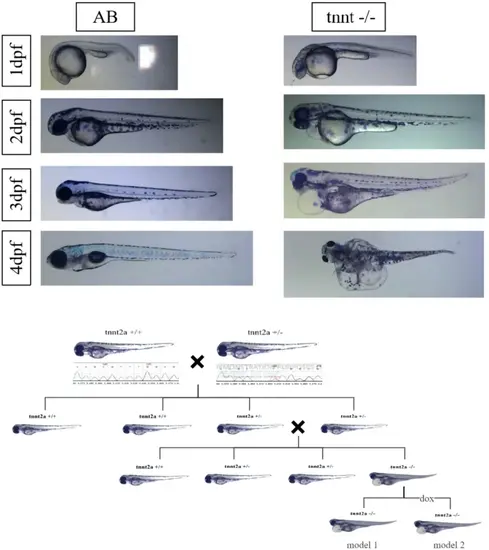

Acquisition and phenotypic analysis of tnnt2a−/− zebrafish. A Model 1 is the tnnt2a−/− homozygous juveniles produced by self-crossing of tnnt2a heterozygotes. Nevertheless, the homozygous mutant model used in this study has only a 25% probability of being obtained through self-crossing, and it exhibits a high mortality rate. To address these limitations, we employed the Tg:Tnnt2a−/− transgenic zebrafish model (referred to as Model 2) in our study. This model features a recovered heartbeat after the addition of DOX, allowing for more reliable and sustainable experimental conditions. B Representative images of lateral view of AB and tnnt2a−/− zebrafish. At 2 dpf, the tnnt2aex10Δ2 ( tnnt2a−/−) exhibits a phenotype reminiscent of dilated cardiomyopathy, characterized by cardiac arrest and enlargement of both the atrium and ventricle. Concurrently, mutant zebrafish display significant pericardial effusion, a hallmark of heart failure, at approximately 3 dpf

Fig. 2

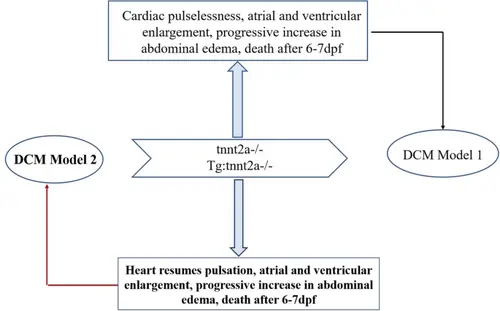

Phenotypic differences between model 1 and model 2

Fig. 3

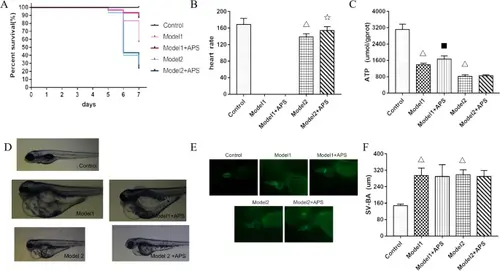

APS improves the cardiac function of DCM zebrafish. A The survival rates of zebrafish in each group, n = 30. B The heart rate of zebrafish after APS administration. Data are mean ± SD ( n = 10; △P < 0.01, compared with control; ☆P < 0.01, compared with the model 2). C Effects of APS on the ATP of zebrafish in model groups. ( n = 10; △P < 0.01, compared with control; ■P < 0.05, compared with model 1). D Representative images of zebrafish in each group at 4dpf. E–F. Comparison of SV-BA of zebrafish in model groups and after APS treatment. Data are mean ± SD ( n = 8; △P < 0.01, compared with control). The experiment was repeated three times

Fig. 4

APS reduces swelling to protect myocardial cells from injury on DCM Zebrafish. H&E staining of the heart area in zebrafish

Fig. 5

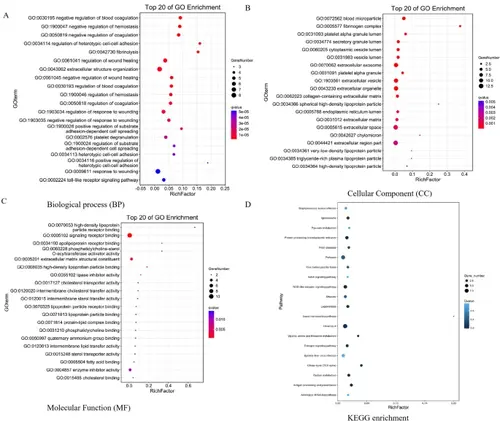

Bioconductor database-enriched pathways and GO entries. A GO enrichment entries in the top 20 about the biological process (BP). B GO enrichment entries in the top 20 about cellular component (CC). C GO enrichment entries in the top 20 about molecular function (MF). D KEGG enrichment entries in the top 20 (p < 0.05). The color of the bubble represents the value of p, and the size of the bubble represents the count of relative entries

Fig. 6

Effects of APS on the cardiomyocytes apoptosis of zebrafish in model groups. TUNEL staining of zebrafish hearts showing the apoptotic cells (red indicates apoptotic cells and blue indicates nuclei)

Fig. 7

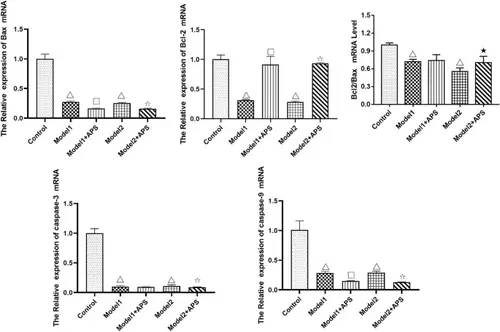

Comparison of mRNA expression of Bax, Bcl-2, caspase-3 and caspase-9 of DCM zebrafish treated with APS. Data are presented as mean ± SD. n = 30. △P < 0.01, Compared with control; □P < 0.01, compared with model 1; ☆P < 0.01, compared with model 2; ★P < 0.05,compared with model 2
