Identification of novel susceptibility loci for non-syndromic cleft lip with or without cleft palate

Authors
Ma, L., Lou, S., Miao, Z., Yao, S., Yu, X., Kan, S., Zhu, G., Yang, F., Zhang, C., Zhang, W., Wang, M., Wang, L., Pan, Y.
Source
Full text @ J. Cell. Mol. Med.
Fig. S6

ZFIN is incorporating published figure images and captions as part of an ongoing project. Figures from some publications have not yet been curated, or are not available for display because of copyright restrictions.

Figure 1

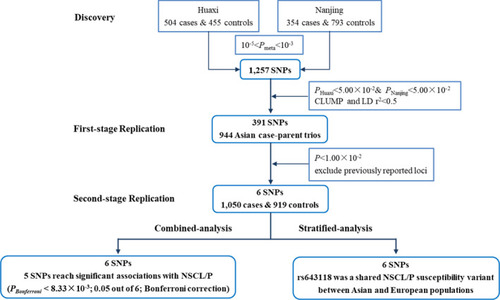

Flow chart of this study
Figure 2

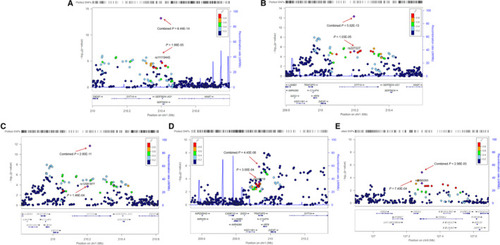

Regional plot of the five newly identified SNPs. The regional plots indicate five variants (A) rs11119445, (B) rs227227, (C) rs12561877, (D) rs643118 and (E) rs2095293 and linkage disequilibrium structure. Logistic regression analyses were used to test the genetic association under an additive model. The marker SNPs are shown as purple diamonds with P values in primary GWAS meta and as with their P values in the combined stage when all of the NSCL/P cases and controls from the primary GWAS meta and replication I, II were pooled together. Points are colour‐coded based on linkage disequilibrium (r2) in Asians. For each plot, the recombination rates (right y‐axes) of the region are shown according to their chromosomal positions (x‐axis)
Figure 3

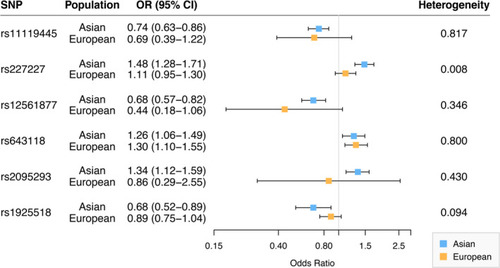

Comparison of associations for the six genetic variants in Asian and European ancestry populations. Pheterogeneity was calculated to test the difference in the association of each of the SNPs with risk of NSCL/P across these two populations
Figure 4

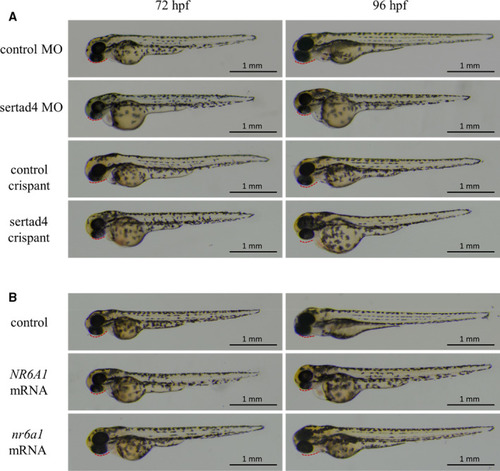

Zebrafish larvae were imaged with transmitted light. (A) Translation‐blocking morpholino and CRISPR/Cas9‐based targeted sertad4 knockdown (crispant) zebrafish models, (B) Embryos with over‐expression of human NR6A1 or zebrafish nr6a1a. Mandibular indicated by red dotted line
