Fig. 1

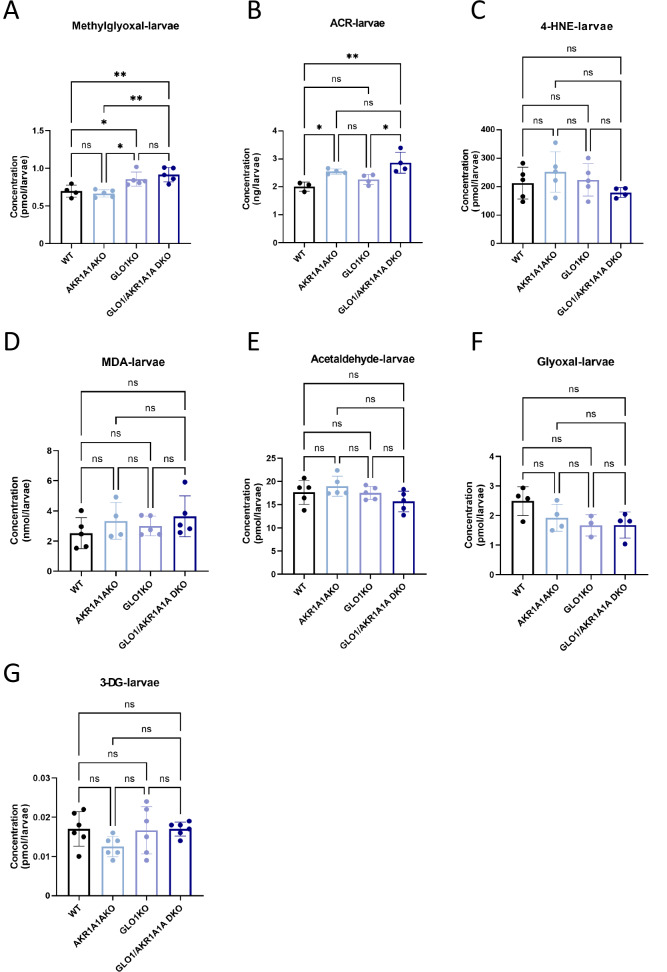

GLO1/AKR1A1A DKO larvae exhibited increased MG and ACR levels simultaneously.
A MG levels were increased in GLO1/AKR1A1A DKO larvae compared to WT and AKR1A1AKO larvae. n = 4/5 biological replicates per group. Exact p values for each comparation are: WT vs. GLO1KO, p = 0.048; WT vs. DKO, p = 0.006; AKR1A1AKO vs. GLO1KO, p = 0.0108; AKR1A1AKO vs. DKO, p = 0.0012. MG, methylglyoxal. B ACR levels were increased in GLO1/AKR1A1A DKO compared to WT and GLO1KO larvae. n = 3/4 biological replicates per group. Exact p values for each comparation are: WT vs. AKR1A1AKO, p = 0.0491; WT vs. DKO, p = 0.0027; GLO1KO vs. DKO, p = 0.0181. ACR, acrolein. C–E 4-HNE, MDA and acetaldehyde concentrations were unchanged in DKO larvae compared to WT, GLO1KO and AKR1A1AKO larvae. n = 4/5 biological replicates per group. 4-HNE, 4-hydroxynonenal; MDA, malondialdehyde. F,G Glyoxal and 3-DG levels were unchanged in DKO larvae compared to WT, GLO1KO and AKR1A1AKO larvae. n = 6 biological replicates per group. 3-DG, 3-deoxyglocosone. The bars indicate mean ± SD values. Statistical analysis was performed by one-way ANOVA. ns, not significant, *p < 0.05, **p < 0.01. Source data are provided as a Source Data file.
