Fig. 1

ID

ZDB-IMAGE-260601-1

Antibodies

Ab15-tuba

Publication

Bertrand et al., 2026 - ⍺TAT1-dependent microtubule acetylation is required for touch sensation in zebrafish but not for cilia-driven morphogenesis

All Figures

Figures for Bertrand et al., 2026


Figure Caption

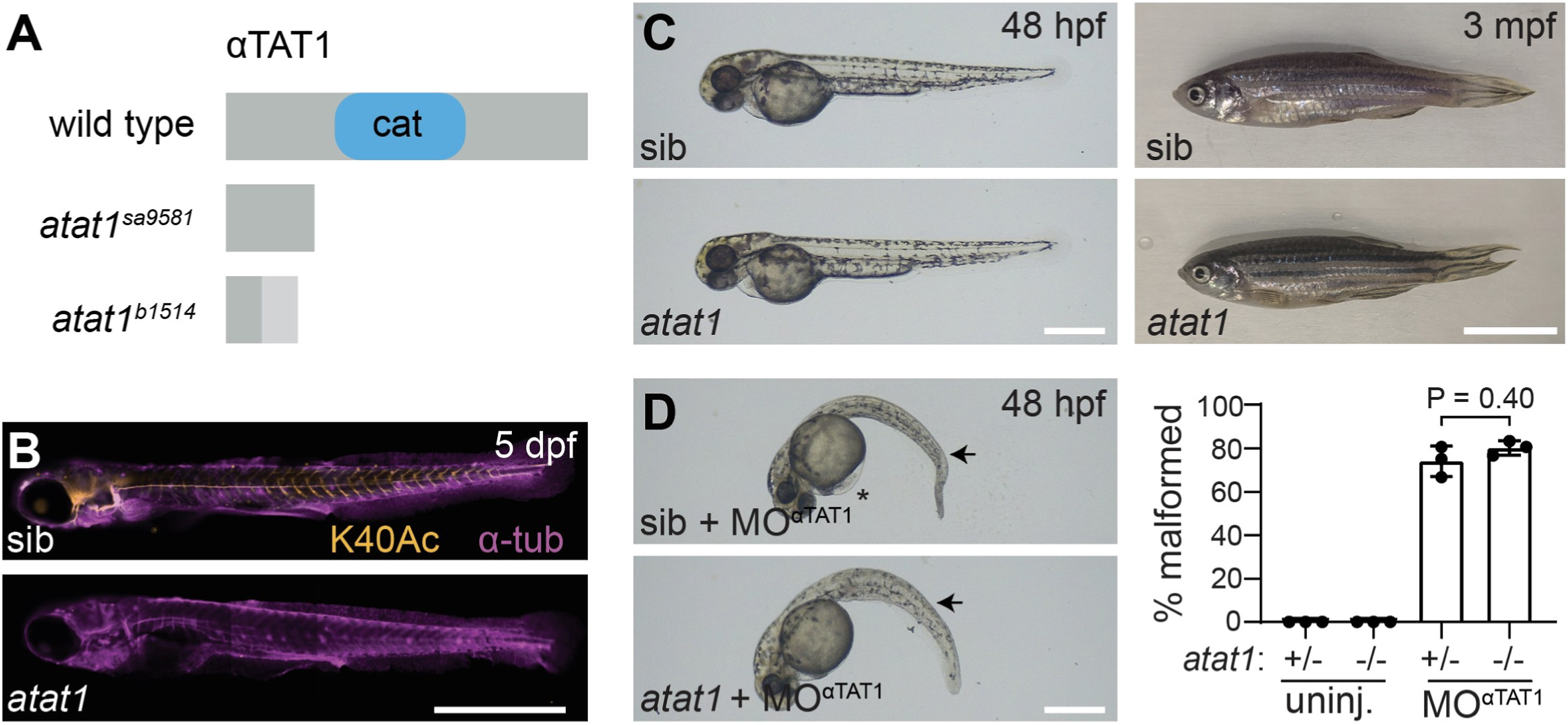

Fig. 1 ⍺TAT1 is not required for zebrafish development (A) Schematic of the 305-amino acid ⍺TAT1 protein showing the N-terminal catalytic domain. The atat1^sa9581 allele introduces a premature stop codon and the atat1^b1514 allele contains a frameshifting insertion in exon 1. Both alleles truncate the protein upstream of the catalytic domain. (B) Immunofluorescence of 5 dpf wild-type sibling and atat1 mutant larvae stained for ⍺-tub^K40Ac and total ⍺-tub. Scale bar, 1 mm. (C) Lateral views of wild-type sibling and atat1 mutant embryos at 48 hpf (left) and 3 mpf (right). Scale bar, 0.5 mm and 1 cm, respectively. (D) Wild-type sibling and atat1 mutant embryos injected with MO^⍺TAT1. Asterisk indicates oedema; arrows indicate body curvature (left). Percentage of embryos exhibiting malformations is quantified (right). Dots represent individual clutches; error bars indicate standard deviation. P values were calculated using the Mann-Whitney U test. Scale bar, 0.5 mm.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 535, Bertrand, S.G., Grimes, D.T., ⍺TAT1-dependent microtubule acetylation is required for touch sensation in zebrafish but not for cilia-driven morphogenesis, 124-132, Copyright (2026) with permission from Elsevier. Full text @ Dev. Biol.
