Figure S1.
- ID
- ZDB-IMAGE-260530-19
- Publication
- Pirzada et al., 2026 - Loss of U11/U12 spliceosome gene ZCRB1 leads to aberrant ciliogenesis and WNT signaling
- All Figures
- Figures for Pirzada et al., 2026
|
Figure Caption
Figure S1.
Generation of CRISPR-Cas9-edited ZCRB1-heterozygous HEK293 cells.

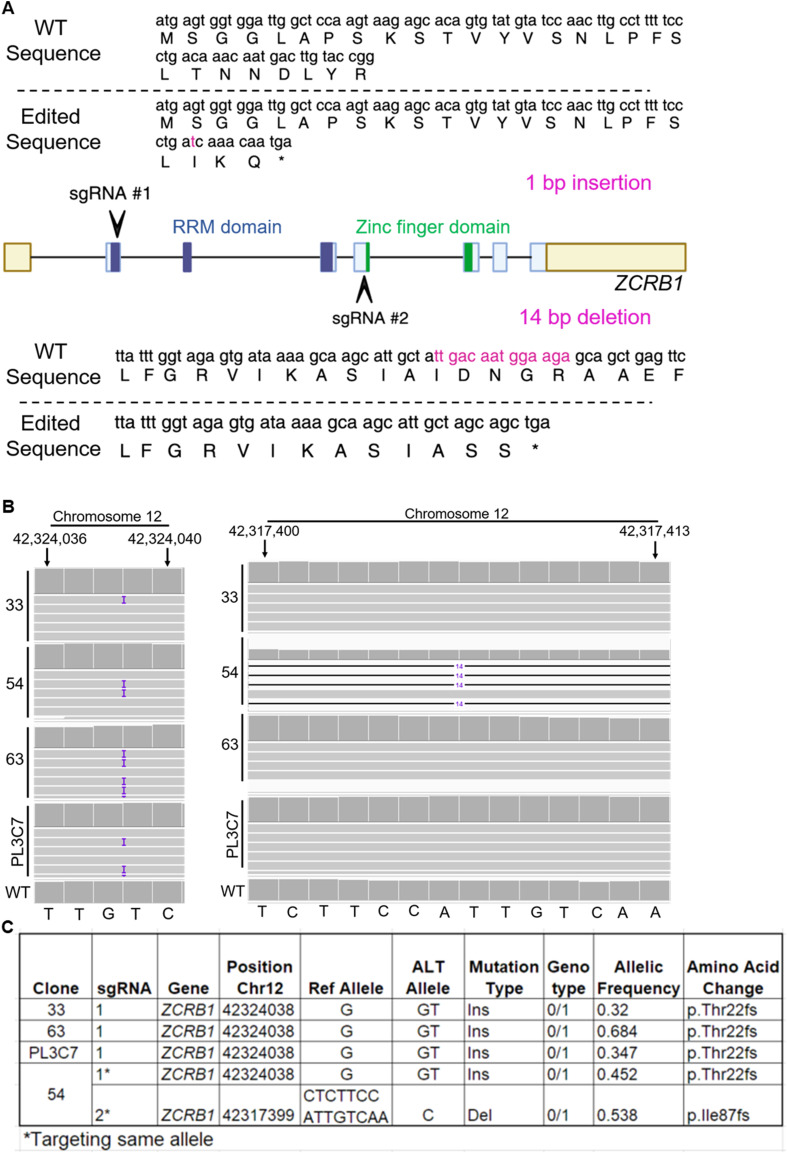

(A) Schematic representation of sgRNAs 1 and 2 targeting exons 1 and 4 of ZCRB1. (B) IGV snapshots of whole-genome sequencing CRAM file alignments of ZCRB1-heterozygous cells compared with parental WT, depicting respective indels (shown in purple) because of ZCRB1 sgRNAs 1 and 2. (C) Gene dosage and functional consequences of CRISPR-Cas9–mediated editing of ZCRB1 along with gene coordinates and type of allelic mutations.
