Fig. 5.
- ID
- ZDB-IMAGE-260522-45
- Antibodies
- Publication
- Dockery et al., 2026 - Genes for 5'mRNA cap binding proteins, eif4ea and eif4eb, have alternative roles during heart regeneration
- All Figures
- Figures for Dockery et al., 2026
|

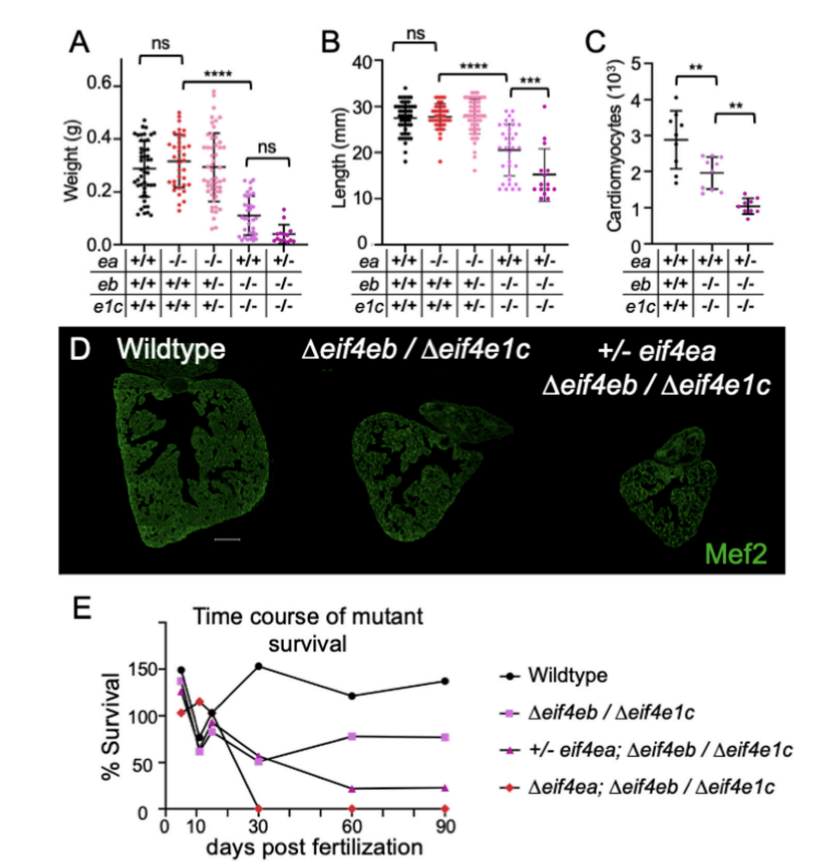

Fig. 5. Loss of additional alleles from the genes encoding canonical cap binding factors demonstrates a dose dependence in their compensation abilities. (A) Weights of Δeif4eb/Δeif4e1c double mutants compared to of Δeif4eb/Δeif4e1c double/eif4ea hets (Mean: wildtype = 0.287g, Δeif4ea = 0.315g, Δeif4eb/ Δeif4e1c = 0.110g, Δeif4ea-HET/Δeif4eb/Δeif4e1c = 0.039g; ANOVA wt - Δeif4ea p-value = 0.712, ANOVA wt- Δeif4eb/Δeif4e1c p value < 0.0001; N = 47, 37, 34, 14). (B) Lengths of respective mutants (Mean: wildtype = 27.5 mm, Δeif4eb/Δeif4e1c = 20.5 mm, Δeif4ea-HET/Δeif4eb/Δeif4e1c = 15.1 mm, ANOVA p value < 0.001, N = 48, 34, 14). (C)Cardiomyocyte counts from Mef2c positive cells (Mean: wildtype = 2882, Δeif4eb/Δeif4e1c = 1962, Δeif4ea-HET/Δeif4eb/ Δeif4e1c = 1046, ANOVA p value < 0.0001, N = 9, 10, 9). (D) Images of representative hearts. (E) Time course of triple mutant survival. The Δeif4eb/Δeif41c double mutants die by 30 days post fertilization (dpf). Removing each additional eif4ea allele increases death further with triple mutants being lethal by 30dpf showing that the Δeif4ea/Δeif4eb survival depends on eif4e1c. Error bars represent mean ± s.e.m. Scale bar = 100um.
Reprinted from Developmental Biology, 534, Dockery, R., Zevallos, M., McNulty, C., Zecchino, T., Ratermann, R., White, R., Kolonay, D., Baskin, K., Goldman, J.A., Genes for 5'mRNA cap binding proteins, eif4ea and eif4eb, have alternative roles during heart regeneration, 50-60, Copyright (2026) with permission from Elsevier. Full text @ Dev. Biol.
