FIGURE 3

ID: ZDB-IMAGE-260512-9
Publication: Nieoczym et al., 2026 - Studies on the anticonvulsant potential of 6-gingerol, an active ingredient of ginger rhizome
All Figures: Figures for Nieoczym et al., 2026


Figure Caption

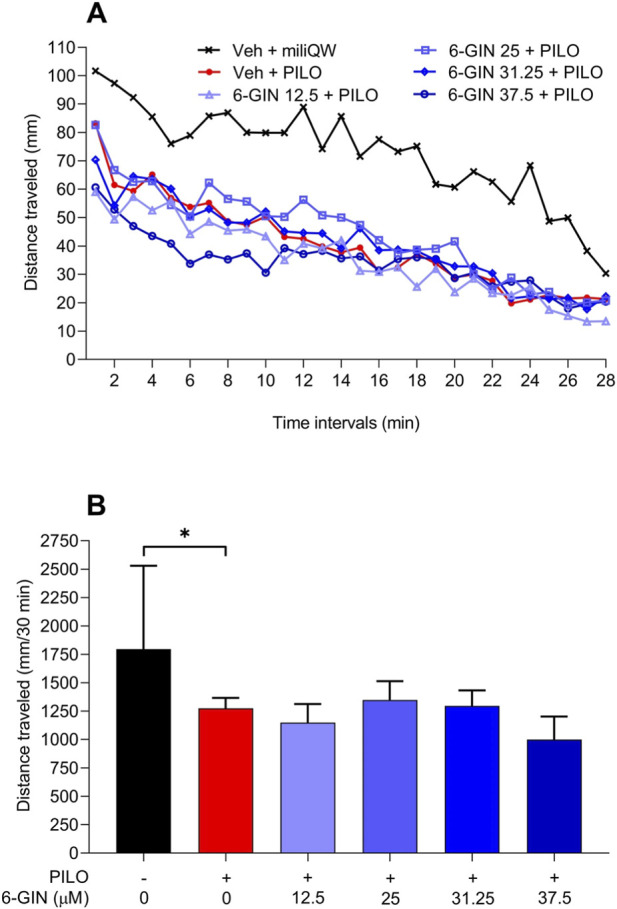

FIGURE 3 The effect of 6-gingerol on hypolocomotion in the PILO-induced seizure model in larval zebrafish. After 22 h long incubation in different 6-gingerol concentrations (12.5–37.5 μM) larvae were exposed to PILO (50 mM) and after 2 min delay analysis of locomotor activity started. Results of the experiments are shown as distance traveled in 2 min-long time bins (A). Time-bin analyses are presented descriptively; statistical inference marked was based on total distance traveled within 28 min (B). Data were analyzed using Kruskal–Wallis test with Dunn’s multiple comparison test: KW = 25.34, p < 0.001. Data are shown as median + 95% confidence limits (n = 32–48 per group). *p < 0.05. 6-GIN, 6-gingerol; miliQW, miliQ water; PILO, pilocarpine hydrochloride; Veh, vehicle.

Figure Data

Phenotype details
