Figure 4

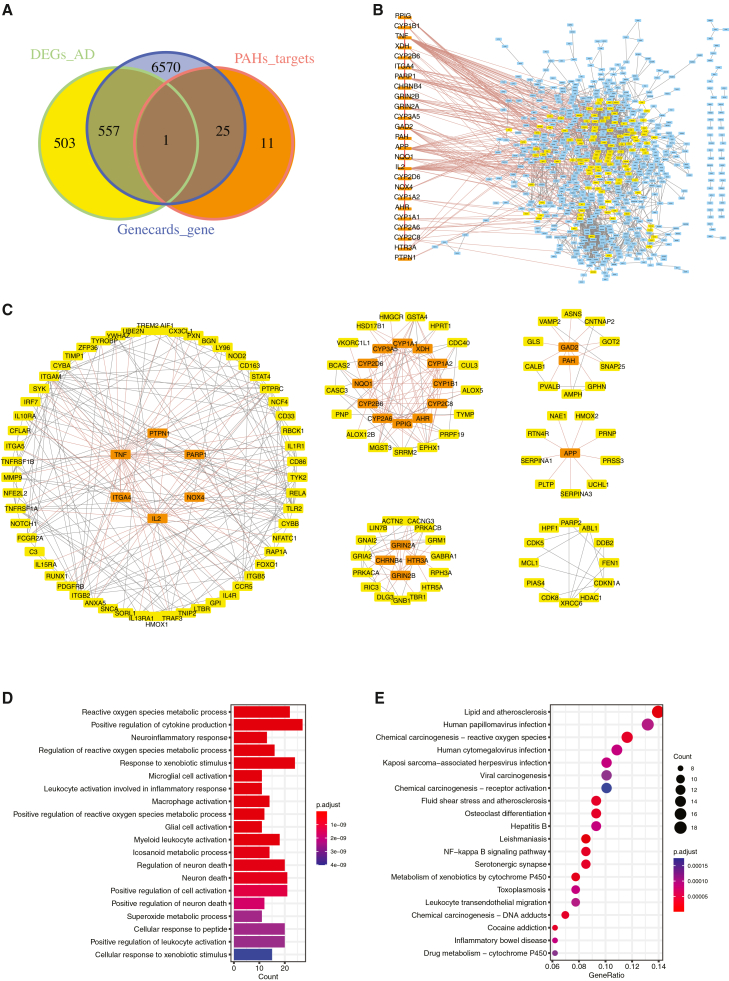

Interaction network of PAHs’ potential targets and their downstream proteins

(A) Venn diagram analysis of AD-associated DEGs, AD-associated GeneCards library genes, and potential target protein genes for PAHs.

(B) Protein-protein interaction networks (PPI) analysis between predicted PAH targets and AD-associated DEGs. Orange indicates predicted PAH targets; blue and yellow indicate AD-associated DEGs.

(C) Using the leading eigenvector algorithm, modularity, and community structure in PPI from predicted PAH targets and AD-associated DEGs.

(D) GO enrichment analysis of six modular genes, including biological process, cellular component, and molecular function analysis.

(E) KEGG enrichment analysis of six modular genes.
