ZFIN Image: Hancock et al., 2026, Fig. 6.


Figure Caption

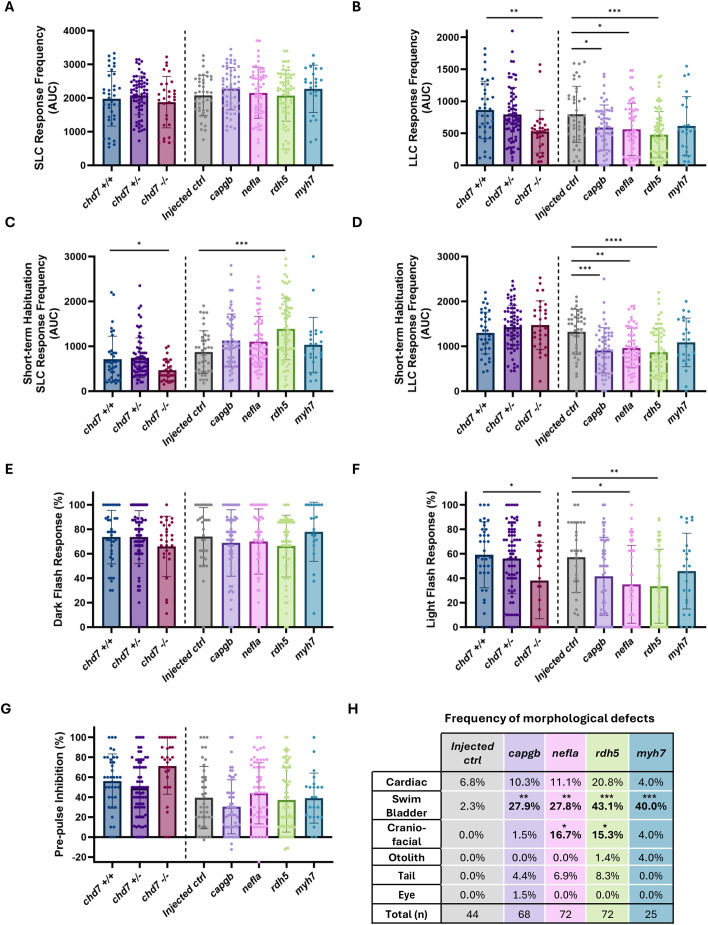

Fig. 6.

Knockdown of candidate genes causes phenocopy of CHARGE model phenotypes. All analyses were performed on larvae derived from multiple clutches in a minimum of two independent experiments. (A) Area under the curve (AUC) plotted for each larva's short-latency C-bend (SLC) response frequency. (B) AUC plotted for each larva's long-latency C-bend (LLC) response frequency. (C) Short-term habituation (STH) AUC for each larva's SLC response frequency. (D) STH AUC for each larva's LLC response frequency. (E) Dark-flash response frequency. (F) Light-flash response frequency. (G) Pre-pulse inhibition percentage. Bar graphs in A-G show mean±s.d. (ordinary one-way ANOVA with Dunnetts's multiple comparisons). *P<0.05, **P<0.01, ***P<0.001, ****P<0.0001. (H) Frequency of morphological defects observed for each group of larvae [Fisher's exact test with Benjamini–Hochberg false discovery rate (FDR) correction]. *FDR<0.05, **FDR<0.01, ***FDR<0.001.
