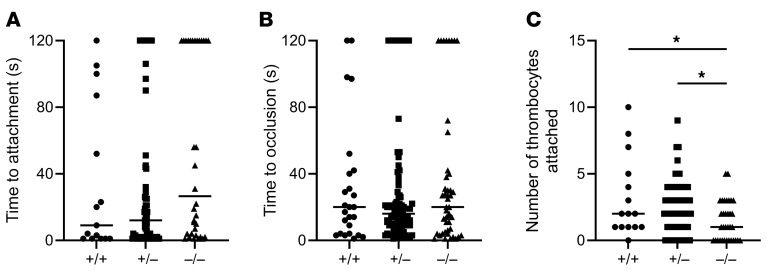

Figure 8 Defective thrombocyte attachment in sel1l mutant zebrafish.

Laser-mediated arterial endothelial injury of a heterozygous incross at 5 dpf shows no difference in (A) time to first thrombocyte attachment (n = 15 +/+, 69 +/–, and 34 –/–) or (B) time to occlusion between WT (+/+), heterozygous (+/–), or homozygous (–/–) larvae (n = 25 +/+, 89 +/–, and 46 –/–), but there was a (C) significant decrease in the number of thrombocytes that attach to the site of injury in homozygous larvae compared with those that were WT and heterozygous (n = 15 +/+, 69 +/–, and 34 –/–). *P < 0.05 by Kruskal-Wallis test with multiple comparisons and an FDR correction.
