Fig. 4

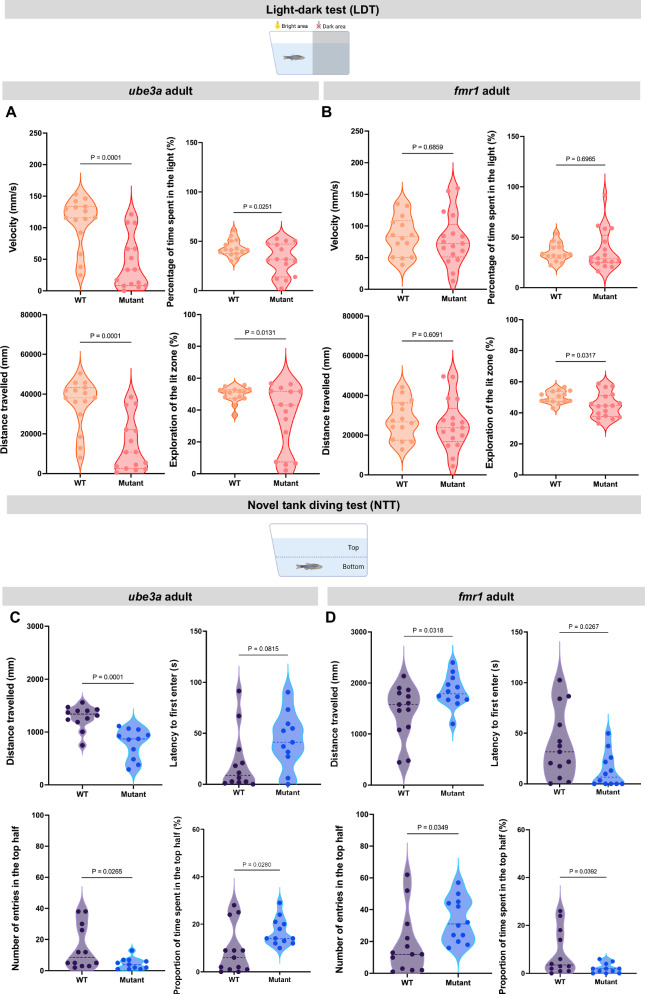

Fig. 4 Locomotor and anxiety-related behavior during the LDT and novel tank test (NTT) in adult ube3a and fmr1 zebrafish.

(A) Distance travelled, average speed, percentage of time spent in the light and exploration of the lit zone by ube3a WT (N = 15) and mutant (N = 15) adult zebrafish. (B) Distance travelled, average speed, percentage of time spent in the light and exploration of the lit zone by fmr1 WT (N = 14) and mutant (N = 17) adult zebrafish. (C) Distance travelled, number of entries in the top half, latency to first enter and proportion of time spent in the top half of the tank by ube3a WT (N = 12) and mutant (N = 11) adult zebrafish. (D) Distance travelled, number of entries in the top half, latency to first enter and proportion of time spent in the top half of the tank by fmr1 WT (N = 13) and mutant (N = 12) adult zebrafish. Unpaired t tests (A – D). The data are presented as violin plots with individual values. Exact P values are presented in the Figures. Zebrafish drawings were created using BioRender.com.
