ZFIN Image: Han et al., 2025, Fig. 5


Figure Caption

Fig. 5

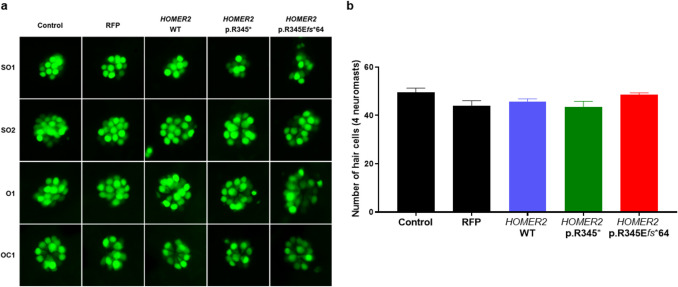

Analysis of hair cell numbers in zebrafish neuromasts. a Representative image of the four neuromasts (SO1, SO2, O1, and OC1) from each group: control, RFP control, HOMER2 WT, HOMER2 p.R345*, and HOMER2 p.R345Efs*64. b Bar graph comparing each group's average number of hair cells across the four neuromasts. No statistically significant differences were observed between the groups (p > 0.05). n = 10 per group. SO1, supraorbital1; SO2, supraorbital2; O1, otic; OC1, occipital; RFP, red fluorescent protein; WT, wild-type; R, arginine; E, glutamate; fs, frameshift
