ZFIN Image: Mo et al., 2025, Figure 8.


Figure Caption

Figure 8.

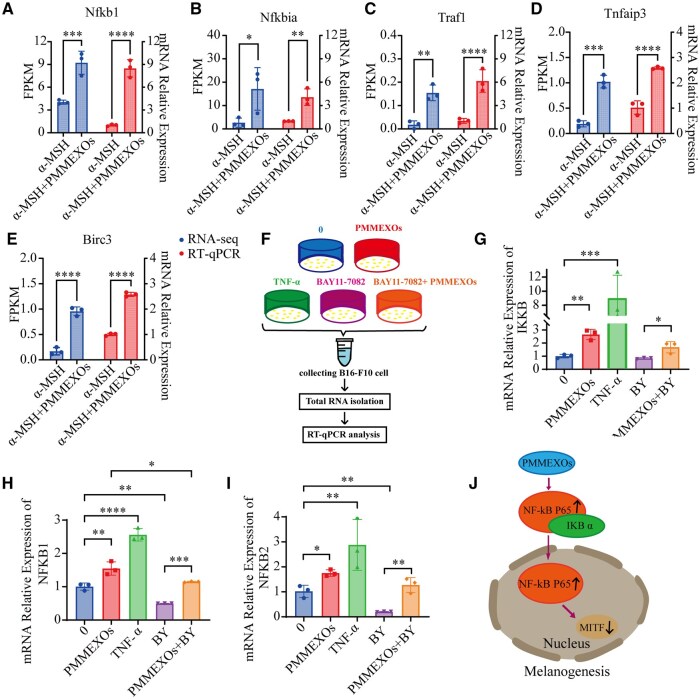

RT-qPCR validated transcriptome sequencing data. Confirmation of transcriptome sequencing data by RT-PCR, including Nfkb1 (A), Nfkbia (B), Traf1 (C), Tnfaip3 (D), Birc3 (E). (F) A brief diagram of RT-PCR experiments performed on B16-F10 cells treated with different groups. mRNA levels of IKKb (G), NFkB1 (H) and NFkB2 (I) in the NF-κB signaling pathway were detected by RT-PCR. (J) Schematic diagram of PMMEXOs inhibiting melanin production. n = 3, data are expressed as mean ± SD, one-way analysis of variance was used for statistical significance. *P < 0.05, **P < 0. 01, ***P < 0.001, ****P < 0.0001.
