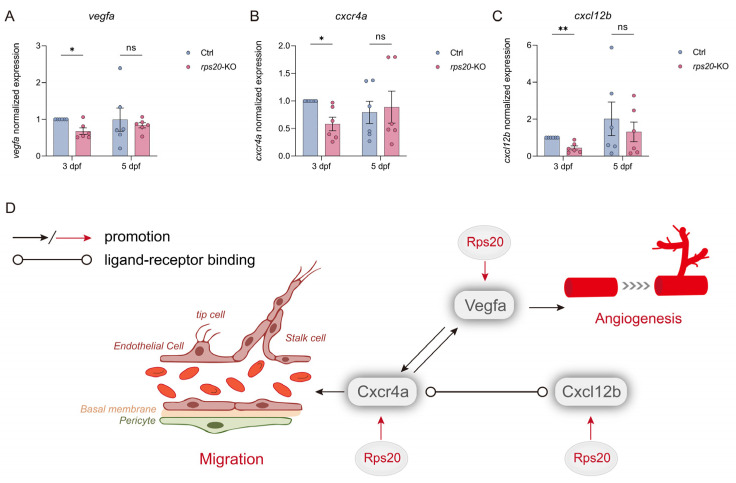

Knockout of rps20 decreased vascular development-related genes. (A–C) RT-qPCR analysis of vegfa (A), cxcr4a (B), and cxcl12b (C) mRNA levels in rps20 knockout and ctrl embryos at 3 dpf and 5 dpf; n = 6. (D) Schematic diagram of rps20 regulating vascular development through vegfa, cxcr4a, and cxcl12b. Arrows denote promoting effects or activation. Circle-ended lines represent ligand–receptor binding interactions. Data presented as mean ± SEM. Statistical significance determined by multiple paired t-tests (* p < 0.05, ** p < 0.01, ns = no significance).
