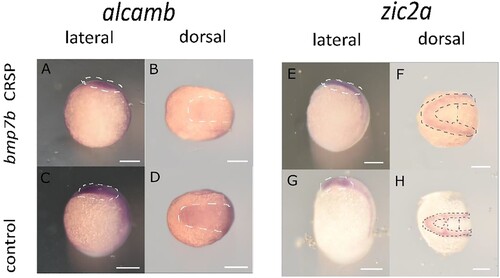

Fig. 3 Analysis of gene expression patterns (wmish) in ANP domains in Crispants for bmp7b and controls (II). (embryos are presented in a lateral and in a dorsal view, the presumptive head is facing to the left, expression domains are encircled). The experimental design is as presented in Figure 3. (A–D) show expression of alcamb in controls (C, D) and Crispants (A, B). Please note the reduced expression in B in comparison to C (encircled). (E–H) show expression of zic2a in controls (G, H) and Crispants (E, F). Please note the extended width in between the lateral expression domains (arrows in F in comparison to arrows in H) as well as the reduced expression at the prospective posterior domain of the ANP (encircled in H, almost absent in F).
