ZFIN Image: Milovanovic et al., 2025, Fig. 12


Figure Caption

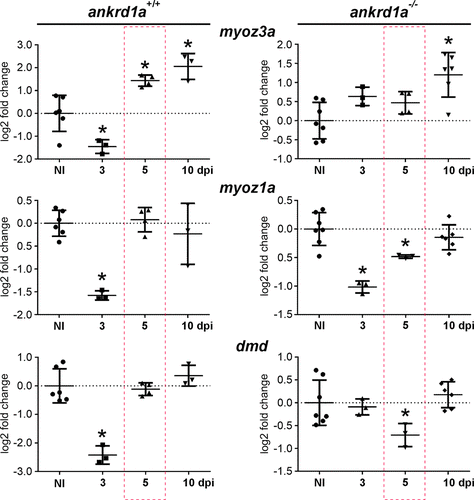

Fig. 12 The expression of maturation markers myoz3a, myoz1a, and dmd is affected in ankrd1a mutant zebrafish during injury repair. qPCR was performed using RNA isolated from noninjured (NI) and injured muscle of both genotypes [wild-type (wt) and ankrd1a mutant] at 3, 5, and 10 days postinjury (dpi) (minimum 3 zebrafish for each timepoint). Red dashed rectangles emphasize results obtained at 5 dpi for easier comparison. Results are presented as log2 fold change ± SD. Statistical analysis was performed using the one-way ANOVA with Dunnett’s post hoc test. The exact P values are given in Supplemental Table S8. Average Ct values ± SD are listed in Supplemental Table S4. *P ≤ 0.05.
