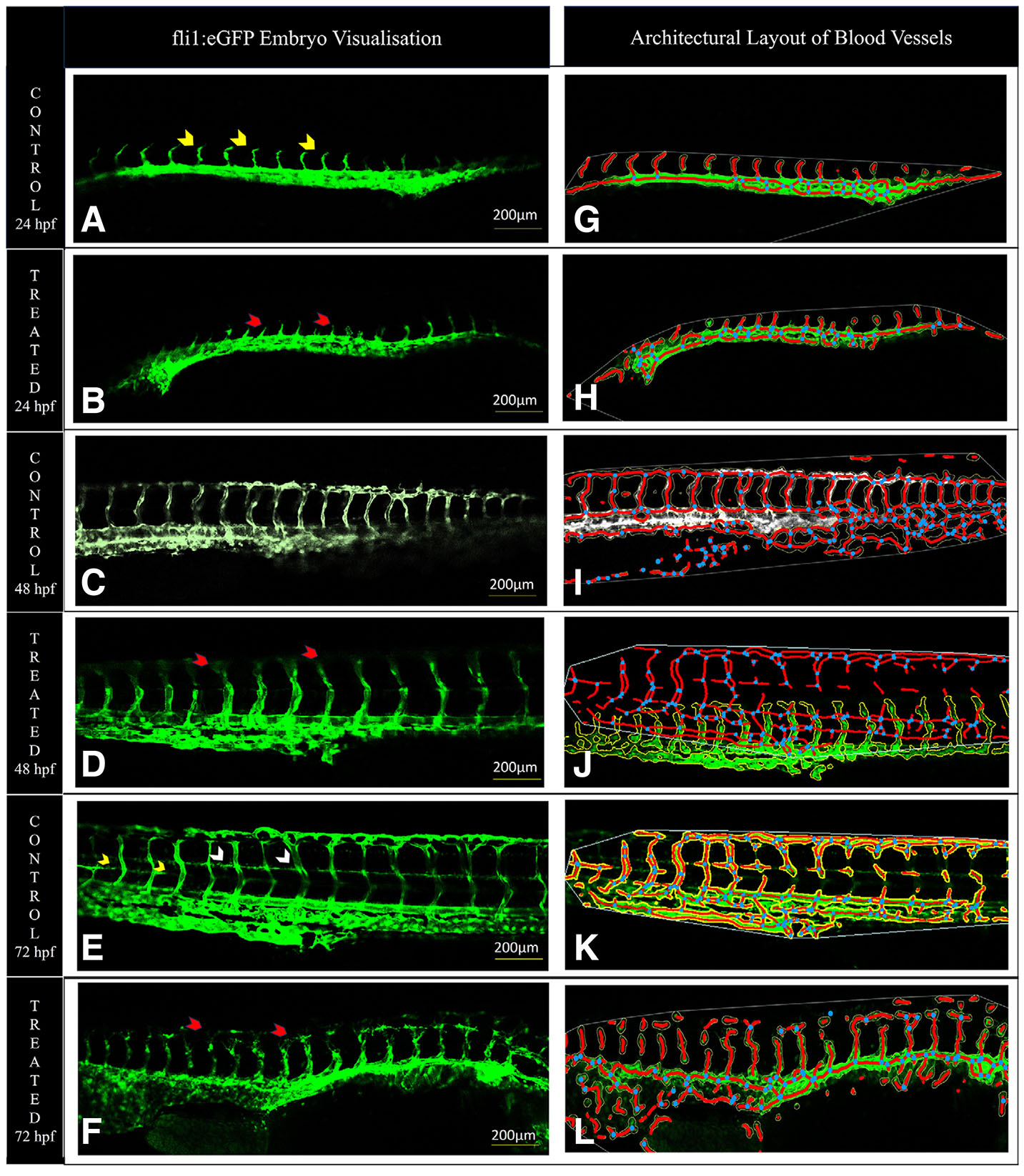

Fig. 5 Confocal images of the fli1: eGFP transgenic line. (A) Control 24 hpf embryos (yellow arrowhead indicates angiogenic sprouts). (B) Treated 24 hpf embryos (red arrowhead indicates shrunken angiogenic sprouts). (C) Control 48 hpf; yellow arrowhead indicates DLAV (dorsal longitudinal anastomotic vessel). (D) Treated 48 hpf embryos (yellow arrowhead indicates the extension of angiogenic sprouts). (E) Control 72 hpf larvae (white arrowhead showing PAV (parachordal vessel) and red arrowhead showing VTA (primordial vertebral artery). (F) Treated 72 hpf larvae (red arrowhead indicates the delayed established DLAVs). 2nd column (G-L): Architectural layout of the vascular network processed on AngioTool software.
