Fig. 2

ID

ZDB-IMAGE-250512-56

Genes

acmsd

Publication

Fargher et al., 2025 - A zebrafish model of acmsd deficiency does not support a prominent role for ACMSD in Parkinson's disease

All Figures

Figures for Fargher et al., 2025


Figure Caption

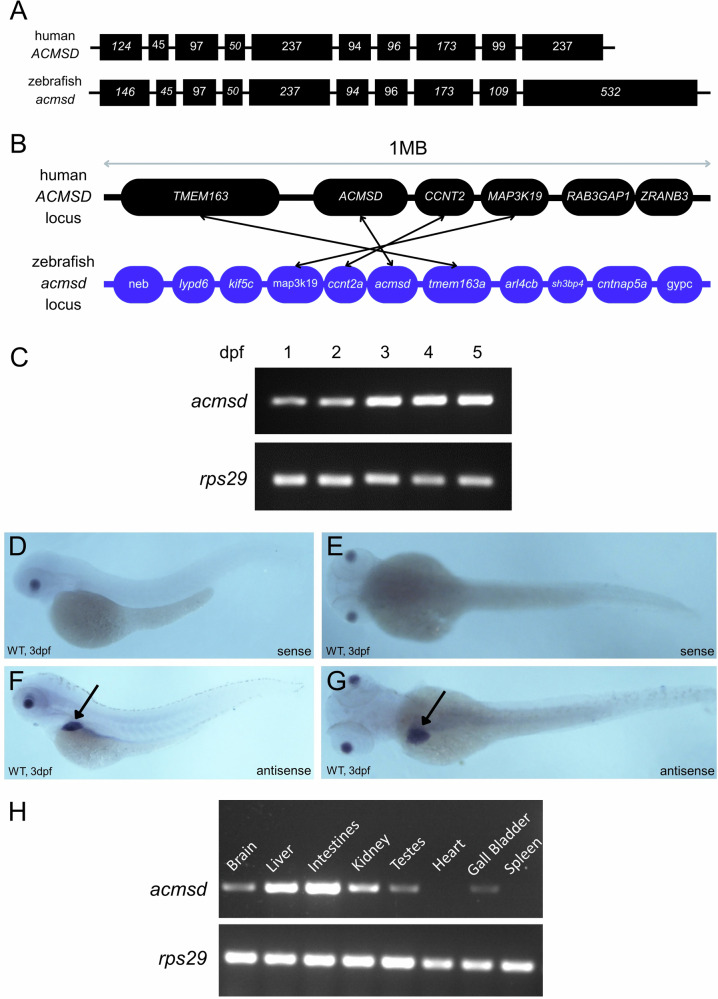

Fig. 2 acmsd is expressed primarily in the liver and intestines of wildtype zebrafish.

A Exonic structure of ACMSD. Human ACMSD (ENSG00000153086) has a single orthologue in zebrafish (ENSDARG00000062549) which shares 81% sequence homology with its human counterpart (based on CLUSTAL W v1.81 data). B Synteny has been retained between species. The region comparison feature on Ensembl was used to compare a 1 Mb region around the Acmsd gene on human chromosome 2 and zebrafish chromosome 9. Not all genes in the region are included. Orthologous genes are identified by arrows. C RT-PCR demonstrated acmsd expression with an increasing concentration from 1 to 5dpf in acmsd^+/+ larvae. In situ hybridisation demonstrated restricted acmsd expression to the liver (arrows) and gut at 3dpf, shown from lateral (F) and dorsal (G) views. The sense probe produced no staining (D, E). H RT-PCR demonstrated acmsd expression primarily in the liver and intestines of both adult male (shown) and adult female (not shown) zebrafish. Expression was also identified in the brain, kidney, gonad,s and gall bladder.

Figure Data

Expression / Labeling details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ NPJ Parkinsons Dis
