Figure Caption

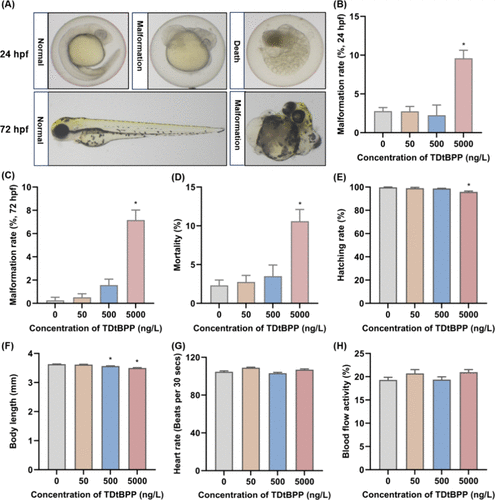

Fig. 1 Representative images of normal, malformed, and dead morphology of offspring zebrafish embryos at 24 and 72 hpf (A), malformation rate of offspring zebrafish embryos at 24 and 72 hpf (B, C), mortality (D), hatching rate (E), body length (F), heart rate (G), and blood flow activity (H) of offspring zebrafish embryos at 72 hpf, following maternal exposure to 0, 50, 500, or 5000 ng/L TDtBPP. n = 3. *p < 0.05 was considered to have a statistically significant difference.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Env. Sci. Tech.
