ZFIN Image: Yin et al., 2025, Fig 1


Figure Caption

Fig 1

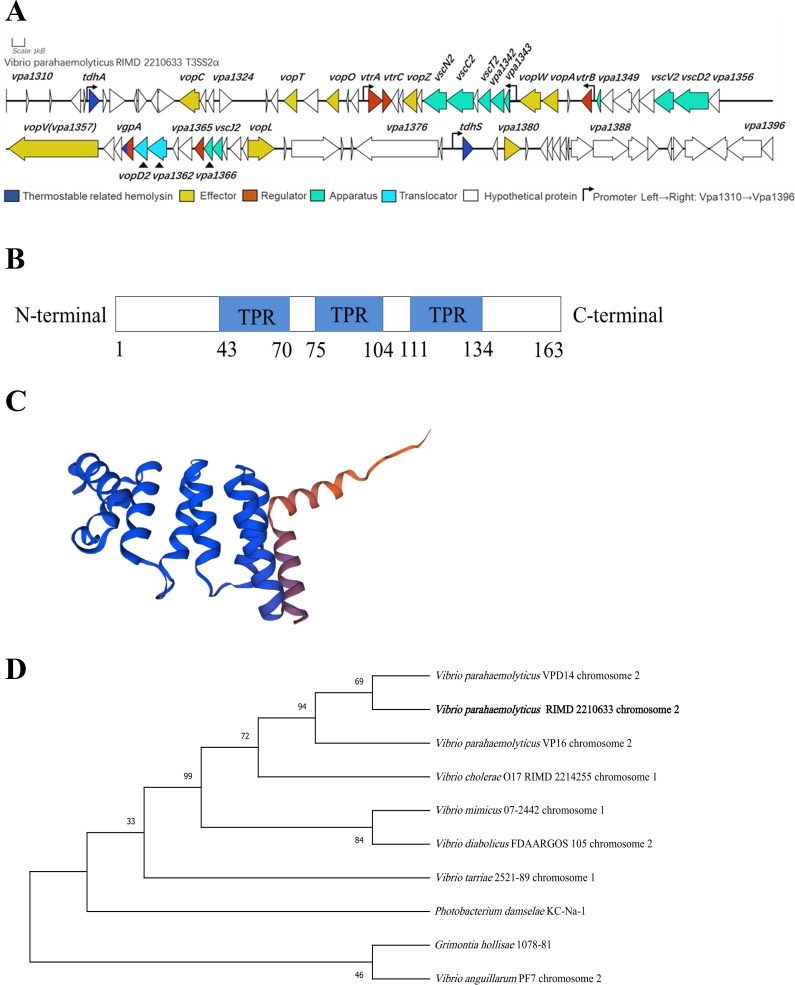

Conserved domain structure and phylogenetic tree analysis of VPA1365 in V. parahaemolyticus. (A) Genetic location and organization of the T3SS2 in V. parahaemolyticus RIMD 2210633. (B) Three blue boxes represent the conserved TPR domain predicted by the INTERPRO. (C) The VPA1365 structure prediction was accomplished using the SWISS-MODEL (the blue and orange regions indicate the amino terminal and carboxy terminal, respectively). (D) The phylogenetic tree inferred from 1,000 replicates was constructed by the neighbor-joining method using MEGA-X.
