Figure Caption

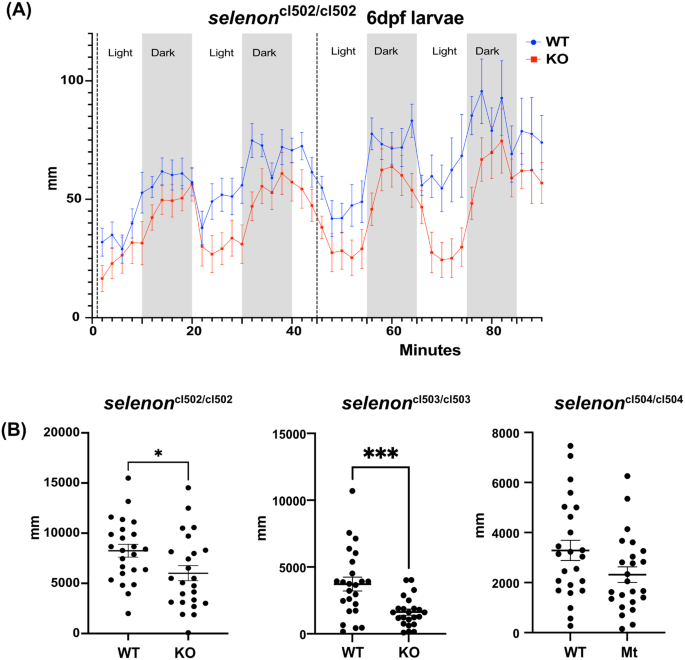

Fig. 3 Selenon-deficient zebrafish larvae show decreased activity. (A) 6 dpf WT (blue) and homozygous selenon-KO selenoncl502/cl502(red) zebrafish larvae were tested for swim activity using an activity monitor and a 90-minute protocol that included vibration (dotted lines) and cycles of alternating light (non-shaded areas) and dark (shaded areas) periods. (B) Quantification of activity assays of WT and homozygous selenon-mutant lines shows decreased total distance swum in SelN-deficient zebrafish larvae when compared to their correspondending WT controls (N = 24). “*” = p < 0.05, “***” = p < 0.001
Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Skelet Muscle
