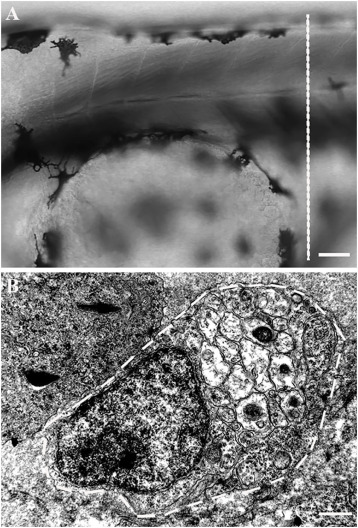

Fig. S1 Radial sorting along the anterior-posterior (AP) axis of the PLLn. (A) Lateral view of a 48 hpf embryo. The dotted line represents the AP position of the cross-section analysis by TEM. Anterior is to the left and dorsal to the top. Scale bar = 50 μm. (B) TEM of a cross-section of the PLLn of a WT embryo at 48 hpf. The PLLn is delineated in white dotted lines. Only 2 axons out of 94 (≈2 %) were radially sorted at 48 hpf at this AP position (5 nerves, n = 5 embryos). Scale bar = 0.5 μm.
