ZFIN Image: Ge et al., 2025, Figure 4


Figure Caption

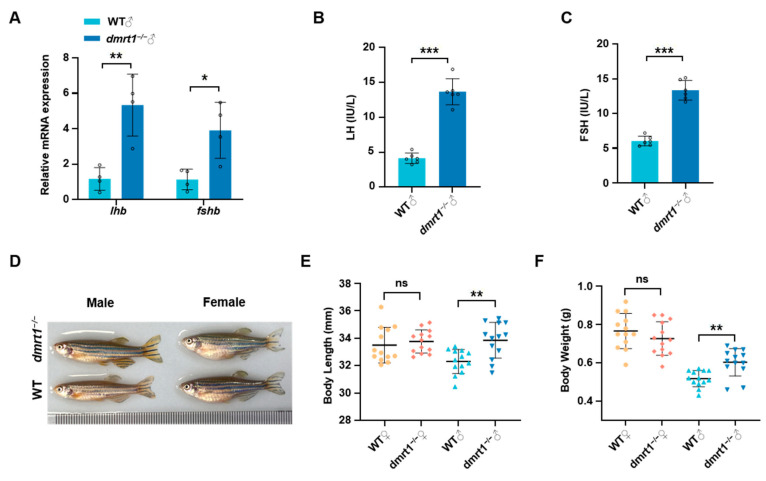

Figure 4

Dmrt1 knockout leads to impaired reproduction and promoted growth in male zebrafish. (A) mRNA expression of lhb and fshb in the pituitary of WT and dmrt1^−/− male zebrafish. (B,C) LH and FSH levels in plasma of adult male zebrafish (n = 6). (D) Morphological comparison of WT and dmrt1^−/− zebrafish at 5 mpf. (E,F) Statistics of body length and body weight of WT and dmrt1^−/− zebrafish at 5 mpf (n = 13). Data are represented as mean ± SD (p < 0.05 *, p < 0.01 **; p < 0.001 ***; ns, no significant).
