Fig 4

ID

ZDB-IMAGE-250203-27

Genes

pglyrp5

Publication

Li et al., 2025 - Peptidoglycan recognition protein PGRP-5 is involved in immune defence and neuro-behavioral disorders in zebrafish embryos

All Figures

Figures for Li et al., 2025


Figure Caption

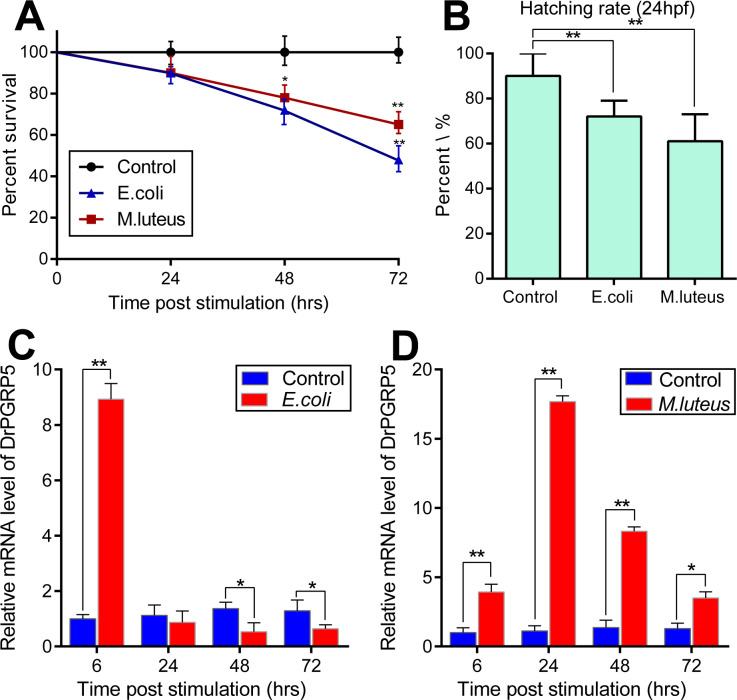

Fig 4 Zebrafish PGRP5 exhibits differential expression characteristics under different bacterial stimuli.

(A) The survival rate of zebrafish embryos at 72 hpf after Gram-negative E.coli (A) and Gram-positive M. luteus (B) challenge. (B) The hatching rate of zebrafish embryos at 24 hpf after E.coli and M. luteus challenge. (C) The temporal mRNA expression profiles of zebrafish PGRP5 in zebrafish larvae after E. coli challenge. (D) The temporal mRNA expression profiles of zebrafish PGRP5 in zebrafish larvae after M. luteus challenge. We detected the expression of PGRP5 gene under different stimuli at time points 6, 24, 48, and 72 hours, respectively. The values in each group were presented as means ± SEM (Each value contains at least four biological replicates, and each biological replicate contains three technical replicates). For all experiments, *p < 0.05; **p <0.01.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS One
