ZFIN Image: Chen et al., 2025, Figure 7


Figure Caption

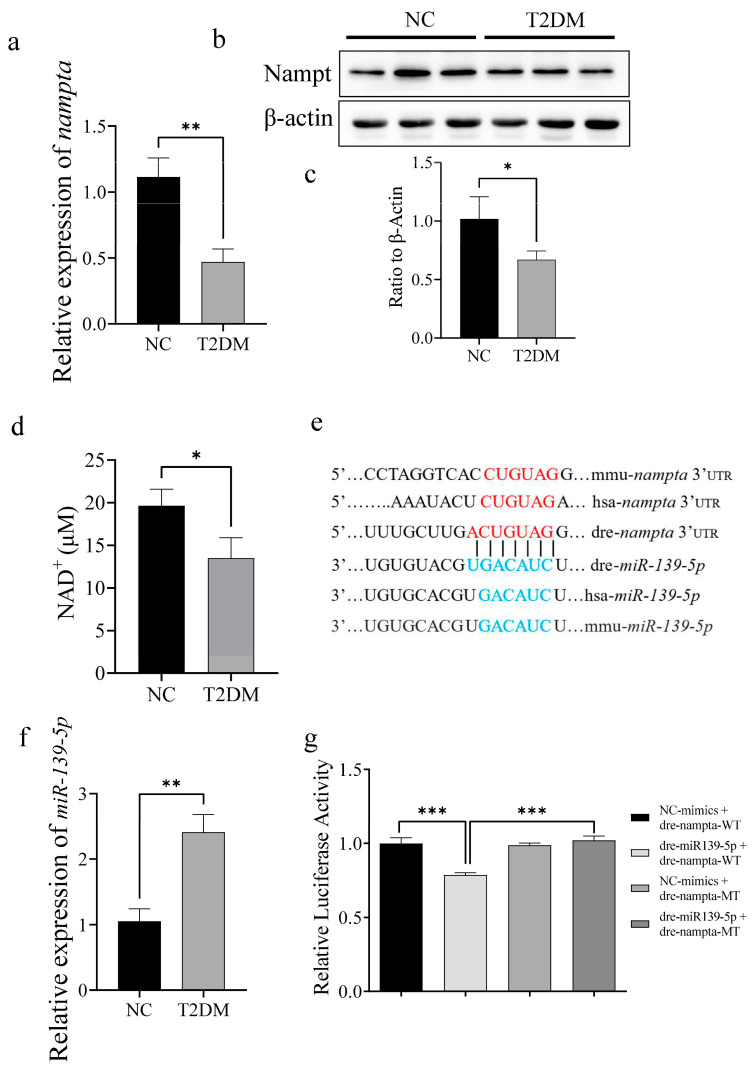

Figure 7

Type 2 diabetes mellitus (T2DM) inhibits NAMPT expression by upregulating miR-139a-5p. (a–c) T2DM significantly downregulates NAMPT mRNA and protein expression in the skeletal muscle of zebrafish. (d) T2DM significantly decreased NAD⁺ content in the skeletal muscle of zebrafish. (e) Using bioinformatics, we predicted that NAMPT is the target gene of miR-139a-5p; the red part is the seed region of NAMPT, and the blue part is the binding site between miR-139a-5p and the NAMPT seed region. (f) T2DM significantly upregulates miR-139a-5p in skeletal muscle. (g) The dual-luciferase reporter assay showed a regulatory relationship between miR-139a-5p and NAMPT. * p < 0.05, ** p < 0.01, *** p < 0.001. (n = 3 samples per group).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
