Fig. 4.

ID: ZDB-IMAGE-250109-64
Source: Figures for Bailon-Zambrano et al., 2024


Figure Caption

Fig. 4.

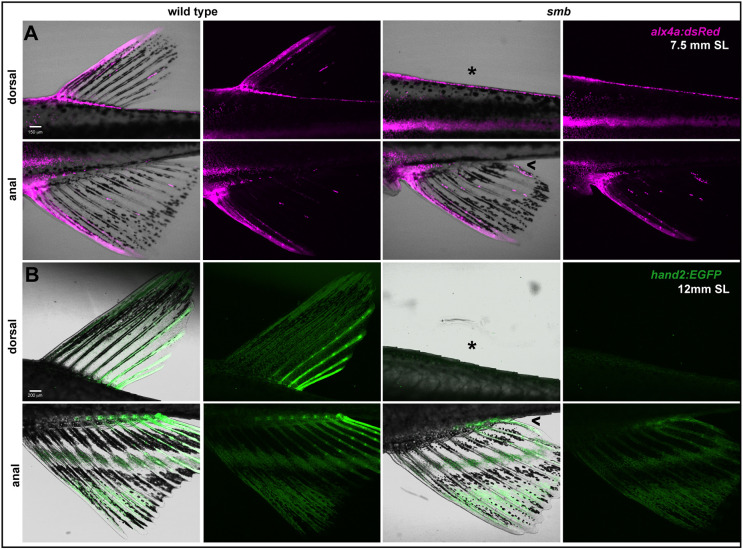

The posterior domain of the anal fin is sensitive to the smb insertion. (A) Anterior median fin rays labeled with alx4a:dsRed were live imaged in wild-type and smb heterozygous mutants (n=3 per genotype). (B) Posterior median fin rays labeled with hand2:EGFP were live imaged in wild-type and smb heterozygous mutants (n=3 per genotype). In both panels, asterisk denotes absent dorsal fin, caret indicates reduced anal fin. Scale bars: 150 μm (A); 200 μm (B).
