Fig. 2

Fig. 2

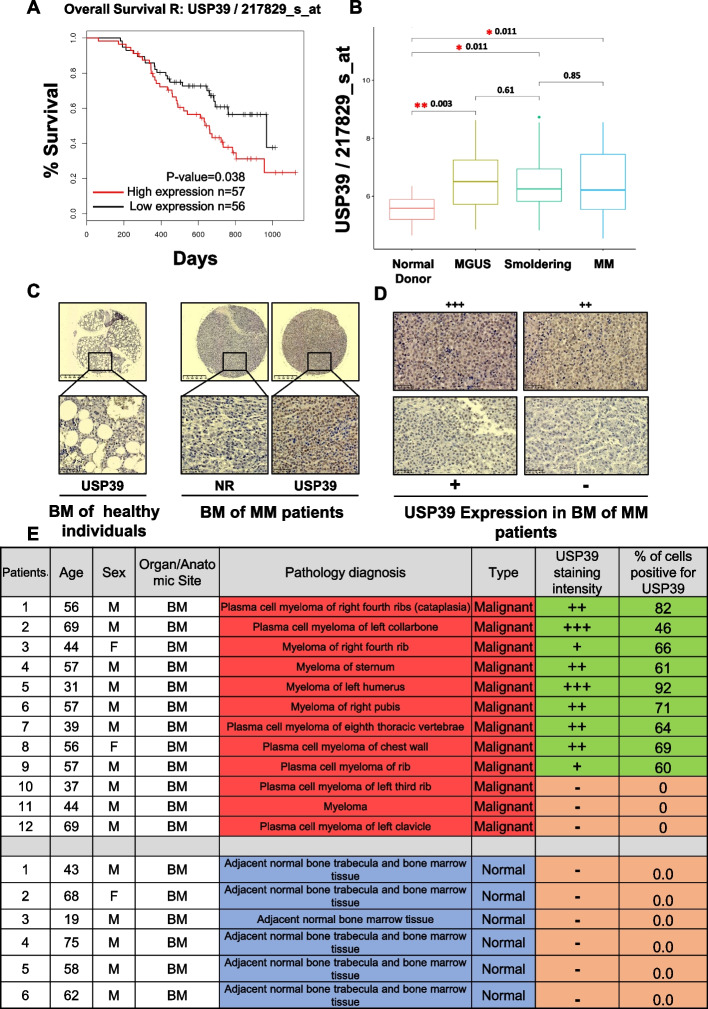

USP39 is overexpressed in MM patients compared to healthy donors and its high expression is correlated with shorter survival. A Kaplan–Meier of overall survival in patients with MM with high (red line) or low (black line) USP39 mRNA expression (P = 0.038) (GEO dataset GSE9782). B USP39 mRNA expression in normal donor, MGUS, Smoldering and MM patients (GEO dataset GSE6477). C Left, Representative USP39 staining of bone marrow samples from healthy individuals. Right, Representative USP39 staining of bone marrow samples from MM patients. “NR” denotes a non-relevant antibody. D Representative USP39 immunostaining of bone marrow samples from MM patients. Staining intensity was interpreted by a pathologist using visual scoring: "– “ undetectable, “ + ” denotes low intensities, “ + + ” denotes medium intensities, and “ + + + ” denotes high intensities. E Table representing USP39 staining of 12 bone marrows from MM patients and 6 bone marrows from healthy individuals. The percentage of USP39 positive cells was determined by ImageJ quantification and confirmed by pathologist visual scoring. Staining intensity were interpreted by pathologist visual scoring: "– “ denotes undetectable, “ + ” denotes low intensities, “ + + ” denotes medium intensities, and “ + + + ” denotes high intensities
