Figure 10

ID: ZDB-IMAGE-250109-323
Publication: Ten Martin et al., 2024 - Tubulin glutamylation regulates axon guidance via the selective tuning of microtubule-severing enzymes
All Figures: Figures for Ten Martin et al., 2024


Figure Caption

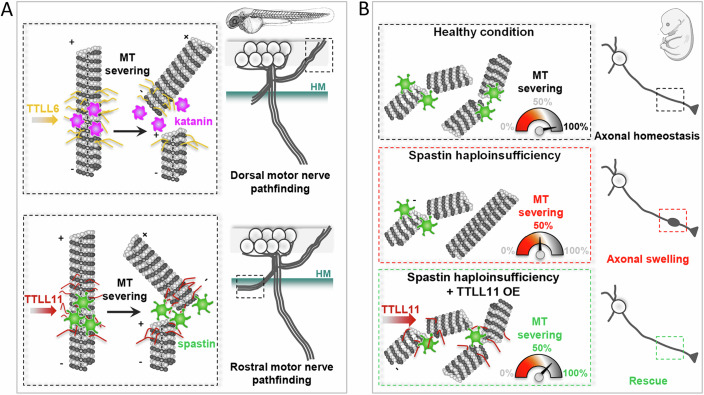

Figure 10 Schematic representation of MT-severing enzyme selective regulation by specific TTLL enzymes in zebrafish and mammalian neurons.

(A) Upper panel: TTLL6-mediated tubulin polyglutamylation selectively tunes p60-Katanin activity in zebrafish dorsally projecting secondary motor axons to control their targeting. Lower panel: TTLL11-driven MT polyglutamylation is required for accurate axon pathfinding of rostrally projecting secondary motor nerves in zebrafish larvae. (B) Spastin haploinsufficiency induces axonal swellings in mammalian cortical neurons (middle panel), which can be selectively rescued by promoting TTLL11-mediated tubulin polyglutamylation (lower panel), most likely through the boosting of residual spastin activity upon the critical threshold (i.e., 50%).
