Figure 6

ID: ZDB-IMAGE-241219-105
Source: Figures for Hsu et al., 2024


Figure Caption

Figure 6

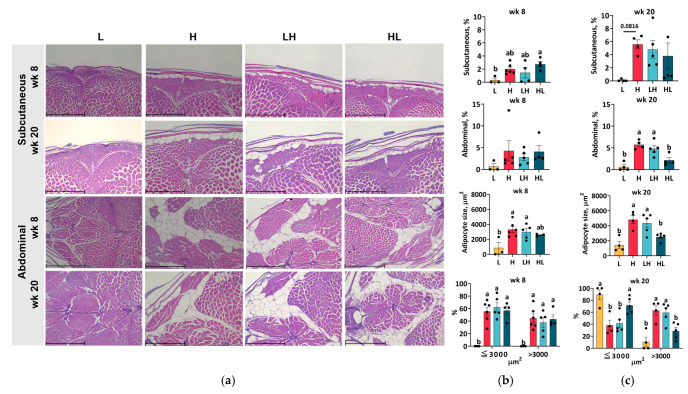

The histology and characteristics of adipose tissues. The sections of subcutaneous and abdominal adipose tissues were stained with H&E (a). Scale bar = 500 µm. The characteristics of adipose tissue, including fat percentages, average size, and distribution of abdominal adipocytes, were analyzed at week 8 (b) and week 20 (c). Data are presented as the mean ± SEM (n = 3–6). ^ab In the graphs, lines, and bars sharing different letters are significantly different (p ≤ 0.05).
