Fig. 7

ID: ZDB-IMAGE-241023-77
Source: Figures for Baranykova et al., 2024


Figure Caption

Fig. 7

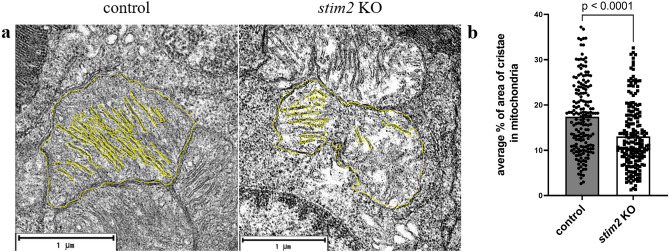

Cristae area in mitochondria of zebrafish photoreceptors. (a) Transmission electron microscopy image of mitochondria from 5 dpf zebrafish larvae with hand-labeled cristae. (b) Ratio of cristae area to area of mitochondria measured using ImageJ software in three pairs of control and stim2 KO zebrafish. Each pair contained at least 40 TEM images of 190 stim2 KO mitochondria and 160 controls. The data were analyzed using unpaired t-test.
