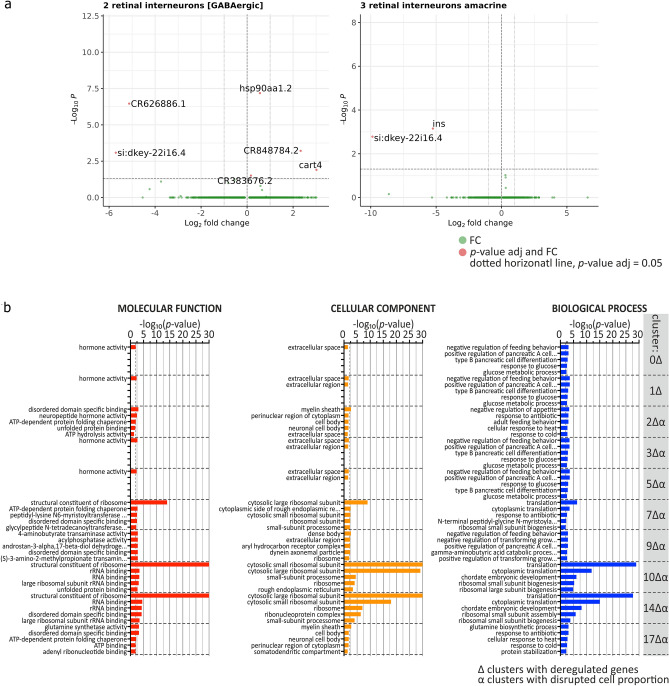

Fig. 2

Fig. 2

Differentially expressed genes in different clusters in stim2 KO zebrafish and the GO analysis. (a) Volcano plots of differentially expressed genes in clusters 2^Δ and 3^Δ. Genes significantly deregulated in each cluster are labeled. Horizontal dotted line indicates p-value adjusted = 0.05; green dot represent genes with not-significantly changed expression; red dots represent genes with significantly changed expression (p-value adjusted < 0.05 and log₂ fold change (FC) different from 0). (b) Gene Ontology enrichment analysis of DEGs showing molecular function (red bars), cellular component (orange bars), and biological process (blue bars) aspects of 10 clusters with DEGs. All GO terms are presented for p < 0.05 (Fisher’s test). Up to five GO terms are presented for each cluster. ^Δ, clusters with dysregulated genes identified; ^α, clusters with dysregulated proportion of cells.
