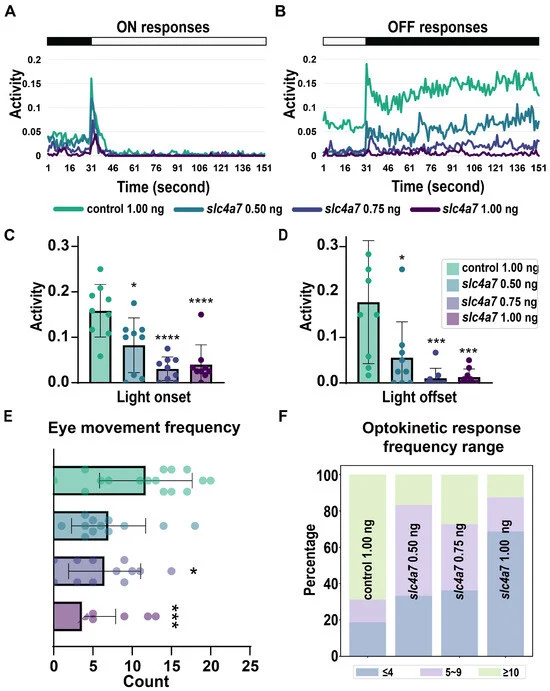

Fig. 5 Zebrafish morphants lacking slc4a7 exhibited impaired visual behaviors. (A,B) VMR testing results are depicted in the line charts for slc4a7-deficient zebrafish morphants. (C,D) Scatter plots with bar show the quantification of ON responses and OFF responses. Each point represents the average activity of 12 larvae within the group at the moment of each light environment change. Error bars represent standard deviation (STD). (E,F) Frequency distributions of eye movements (times/minute) in zebrafish larvae are illustrated in the stacked boxes. Data were analyzed using one-way ANOVA with Tukey’s post hoc tests, * p < 0.05, *** p < 0.001, **** p < 0.0001. The scattered circles of various colors in the bar chart denote individual values of zebrafish eye-related parameters for different groups.
