ZFIN Image: Wang et al., 2024, Fig. 2


Figure Caption

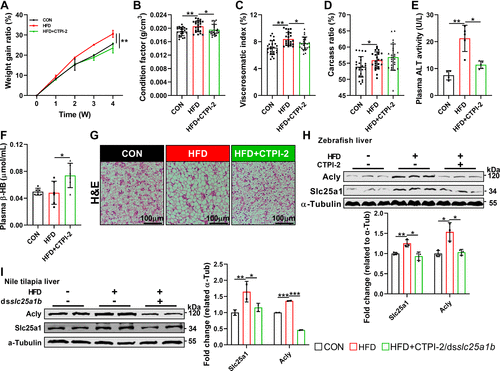

Fig. 2 Blocking mitochondrial citrate export attenuates high-fat diet (HFD)-induced obesity. A: weight gain ratio (n = 3). B: condition factor (n = 24). C: viscerosomatic index (n = 24). D: carcass ratio (n = 24). E: plasma alanine aminotransferase (ALT) activity (n = 4–6). F: plasma β-HB content (n = 6). G: hepatic hematoxylin and eosin (H&E) section. H and I: protein expression of hepatic Slc25a1 and ACLY in zebrafish and Nile tilapia (n = 2–3). Values are means ± SD. The asterisk symbol indicates significant differences from the control treatment at *P < 0.05, **P < 0.01, ***P < 0.001 (independent-sample t test).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Am. J. Physiol. Cell Physiol.
