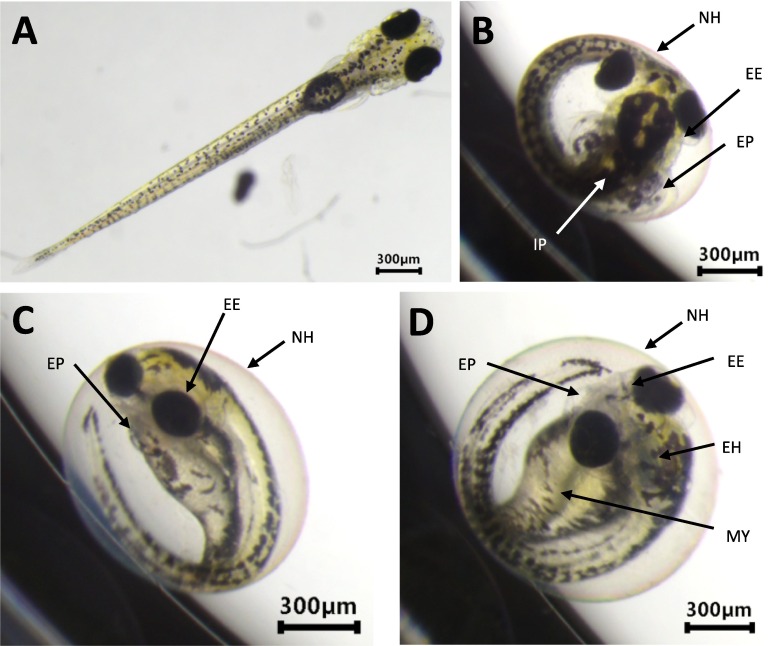

Fig. 3 Larvae exposed to CBZ or AI at 120 hpf. A) Control larva (1 % DMSO) showing no signs of abnormalities. B) Larva treated with 250 µM CBZ. C) Larva treated with 500 µM CBZ. D) Larva treated with 30 µM AI. The larvae depicted in B, C and D show several malformations. Abbreviations: acridine (AI), carbamazepine (CBZ), edema eyes (EE), edema head (EH), edema pericard (EP), increased pigmentation (IP), malformation yolk (MY), no hatching (NH).
