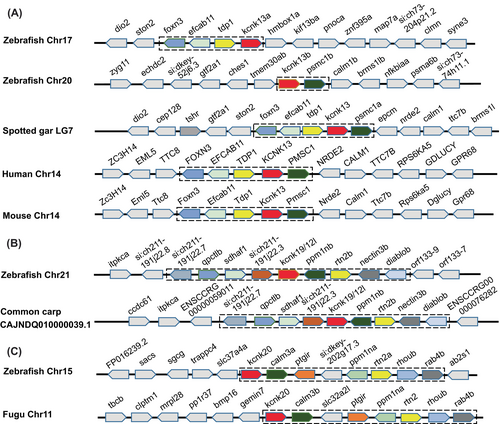

Fig. 13 The syntenic analyses on the duplicated kcnk13, kcnk19, and kcnk20 genes in five representative vertebrate species. The illustration of the genes and their sizes are not proportional to the length of the distances between genes. (A) Common vertebrate kcnk13 synteny. KCNK13 was highlighted in red. The synteny (foxn3–efcab11–tdp1–kcnk13–pmsc1) is shared among the five species. (B) Shared kcnk19 synteny between zebrafish and common carp. (C) Shared kcnk20 synteny between zebrafish and fugu. The syntenies were boxed with blue dashed lines.
