Fig. 5

ID
ZDB-IMAGE-240729-60
Source
Figures for Xie et al., 2024
Figure Caption

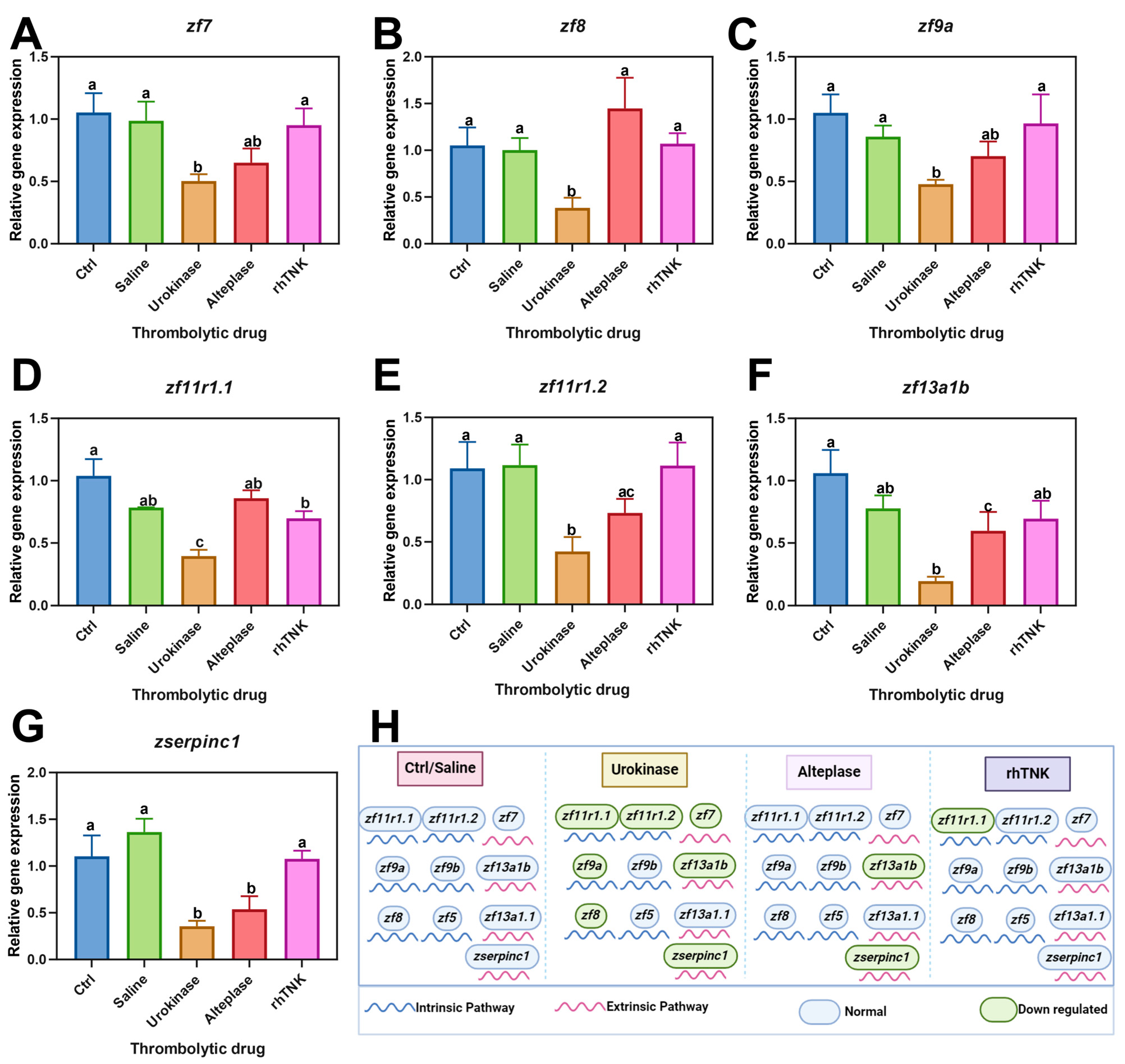

Fig. 5 Effect of three thrombolytic drugs on coagulation pathway. The relative expression level of clotting factor was changed by three thrombolytic drugs, zf7 (A), zf8 (B), zf9a (C), zf11r1.1 (D), zf11r1.2 (E), zf13a1b (F). The relative expression level of coagulation inhibitor serpinc1 after the injection of the three thrombolytic drugs (G). (H) Diagram of mechanism of thrombolytic drugs. The data are presented as the mean ± SE. The different letters on the bar indicate the significant change.
