Fig. 3
- ID
- ZDB-IMAGE-240723-5
- Publication
- Gao et al., 2024 - Stilbenoids from fenugreek seeds alleviate insulin resistance by regulating the PI3K/AKT/mTOR signaling pathway in a type 2 diabetes zebrafish model
- All Figures
- Figures for Gao et al., 2024
|

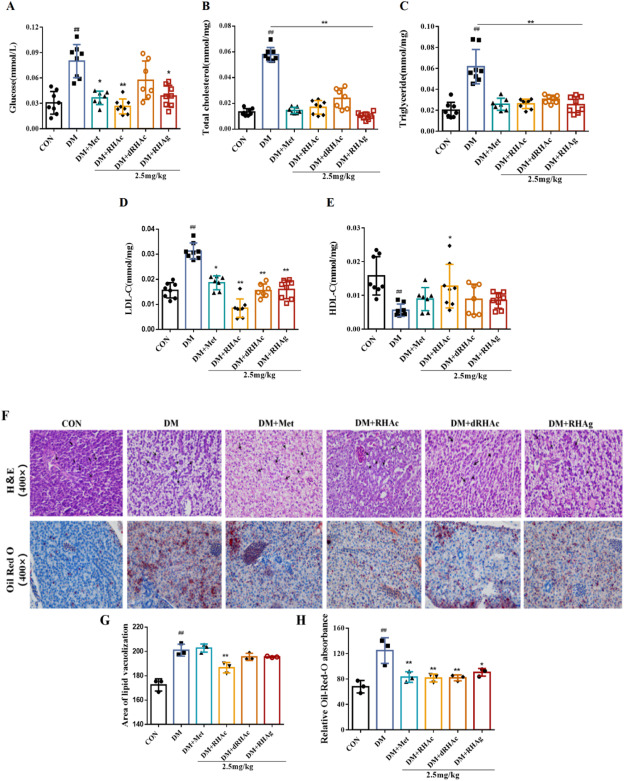

Fig. 3 (A) Glucose levels of adult zebrafish in each group. (B) TC levels of adult zebrafish in each group. (C) TG levels of adult zebrafish in each group. (D) LDL-C levels of adult zebrafish in each group. (E) HDL-C levels of adult zebrafish in each group. (F) Effect of stilbenoids on the liver tissue morphology and Oil red O staining of adult zebrafish.(G)Area of lipid vacuolization.(H)Relative absorbance of Oil-Red-O stain Values are expressed as the mean ± SD in each group. #p < 0.05 and ##p < 0.001 model group versus Con group. *p < 0.05 and **p < 0.001 treatment group versus model group. (For interpretation of the references to color in this figure legend, the reader is referred to the Web version of this article.)
