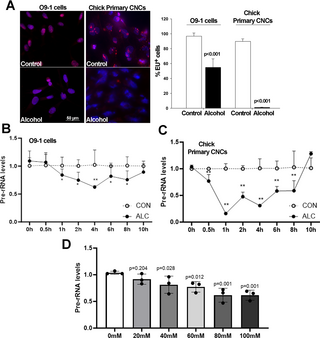

Fig. 3 Alcohol suppresses de novo rRNA synthesis and content in O9-1 cells and primary chick CNCs. (A) Alcohol exposure at the EC50 for O9-1 cells (80mM) and chick primary CNCs (52mM) reveals fewer or no EU-positive nuclei (red) in alcohol-exposed nuclei (blue) as compared with controls. Nuclei visualized using DAPI; bar indicates 50 μm. (B) Dose-response shows a significant decline in de novo rRNA synthesis, quantified using qPCR for ITS-1, at alcohol exposures at or above 40mM for O9-1 cells. (C) At 30min following exposure to 80mM alcohol there is a significant decline in ITS-1 content in O9-1 cells. (D) At 30min following exposure to 52mM alcohol there is a significant decline in ITS-1 content in chick primary CNCs. Values are mean ± SD for three independent replicates. Data analyzed using two-tailed Student’s t-test (A) or one-way analysis of variance (B-D).
Figure Caption
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ PLoS One
