Fig. 5

ID
ZDB-IMAGE-240625-50
Genes
Source
Figures for Jędrychowska et al., 2024
Figure Caption

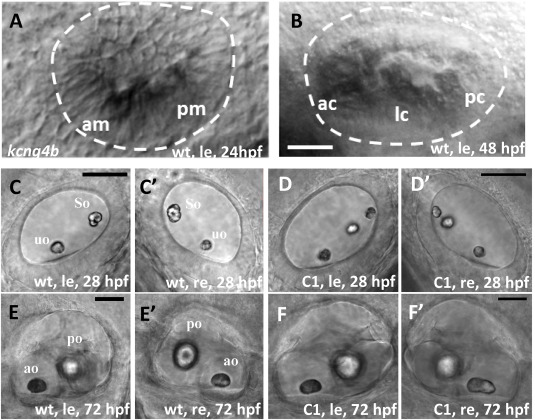

Fig. 5 Kcng4b plays a role in ear development. All images are lateral views (anterior towards the left). A, B – whole mount in situ hybridization, kcng4b, left ear, A - 24 h; B - 48 hpf. C– F - DIC microscopy. C-E − ears at 28 hpf; and D, F - 72 hpf, le and re – left and right ears, uo and so – utricular and saccular otoliths, correspondingly; A, B, C, E − wildtype, D, F – kcng4b-C1 mutant. Abbreviations: C1 - kcng4b-C1; hpf - hours post fertilization; le - left-hand side ear; re - right-hand side ear; wt - wildtype. Scale bar = 50 μm.
