ZFIN Image: Aranda-Mart�nez et al., 2024, Figure 5


Figure Caption

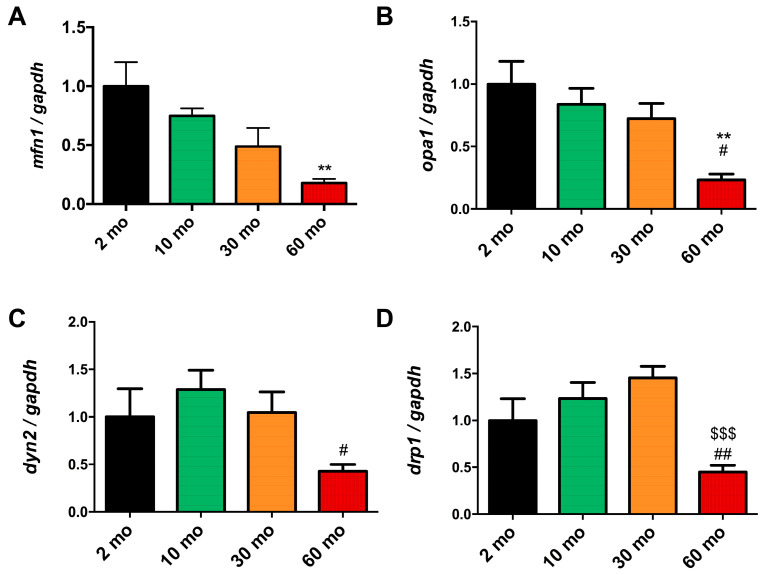

Figure 5

Reduction in mitochondrial dynamics in old fish. (A) The expression of mfn1 and (B) opa1 exhibited a decreasing trend with age, becoming significant at 60 months. (C) dyn2 expression increased at 10 months but also significantly decreased at 60 months. (D) The expression of drp1 increased at 10 and 30 months but showed a substantial decrease at 60 months. Data are presented as mean ± SEM (n = 6–8 animals/group). ** p < 0.01 vs. 2 mo; # p < 0.05 vs. 10 mo; ## p < 0.01 vs. 10 mo; $$$ p < 0.001 vs. 30 mo. One-way ANOVA with a Tukey’s post hoc test.
