Figure 7

ID: ZDB-IMAGE-240620-222
Source: Figures for Li et al., 2024


Figure Caption

Figure 7

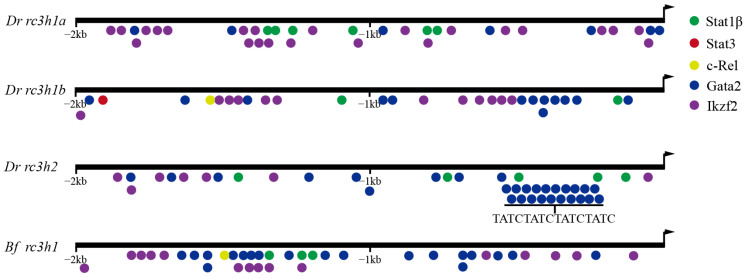

Analysis of transcription factor binding sites in the promoter regions of the rc3h1 and rc3h2 genes in zebrafish and amphioxi. The two kb promoter regions are shown, with arrows indicating the transcription start site. Different-colored dots represent the binding sites of different transcription factors. Note that there are sequences in the promoter of the zebrafish rc3h2 gene that contain multiple overlapped binding sites for Gata2.
