Figure 5.

ID

ZDB-IMAGE-240612-2

Genes

Publication

Rahmati et al., 2024 - Fine-tuning amyloid precursor protein expression through nonsense mediated mRNA decay

All Figures

Figures for Rahmati et al., 2024


Figure Caption

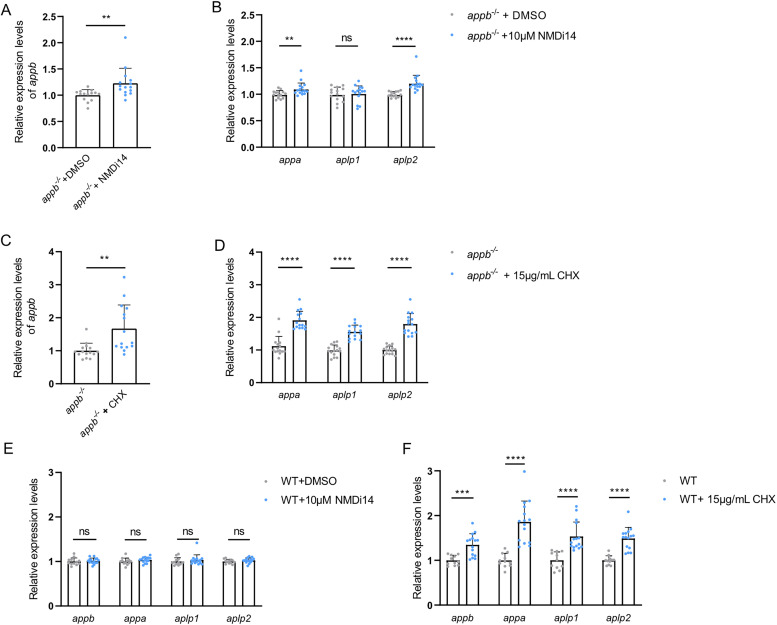

Figure 5.

Expression of app family genes appb^−/− and wild-type (WT) embryos after inhibition of NMD or translation and when knocking down of NMD core factors. A–D, Relative mRNA expression levels of appb, appa, aplp1, and aplp2 in appb^−/− embryos treated with 0.1% DMSO or 10 μM NMDi14 between 24 and 48 hpf (N = 15) to inhibit nonsense-mediated mRNA decay (A,B) or with or without 15 μg/ml CHX between 24 and 29 hpf (N = 15) to block translation (C,D). E, F, Relative mRNA expression levels of appb, appa, aplp1, and aplp2 in wild-type (WT) embryos treated with 0.1% DMSO or 10 μM NMDi14 between 24 and 48 hpf (N = 15) (E) or with or without 15 μg/ml CHX between 24 and 29 hpf (N = 15) (F). A–F, n = 3 biologically independent samples. Data are shown as mean + SD. Student's two-tailed t test were used to calculate p values. *p < 0.05, **p < 0.01, ***p < 0.005, and ****p < 0.0001. ns, nonsignificant.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ eNeuro
