ZFIN Image: Fabian et al., 2024, Figure 4


Figure Caption

Figure 4

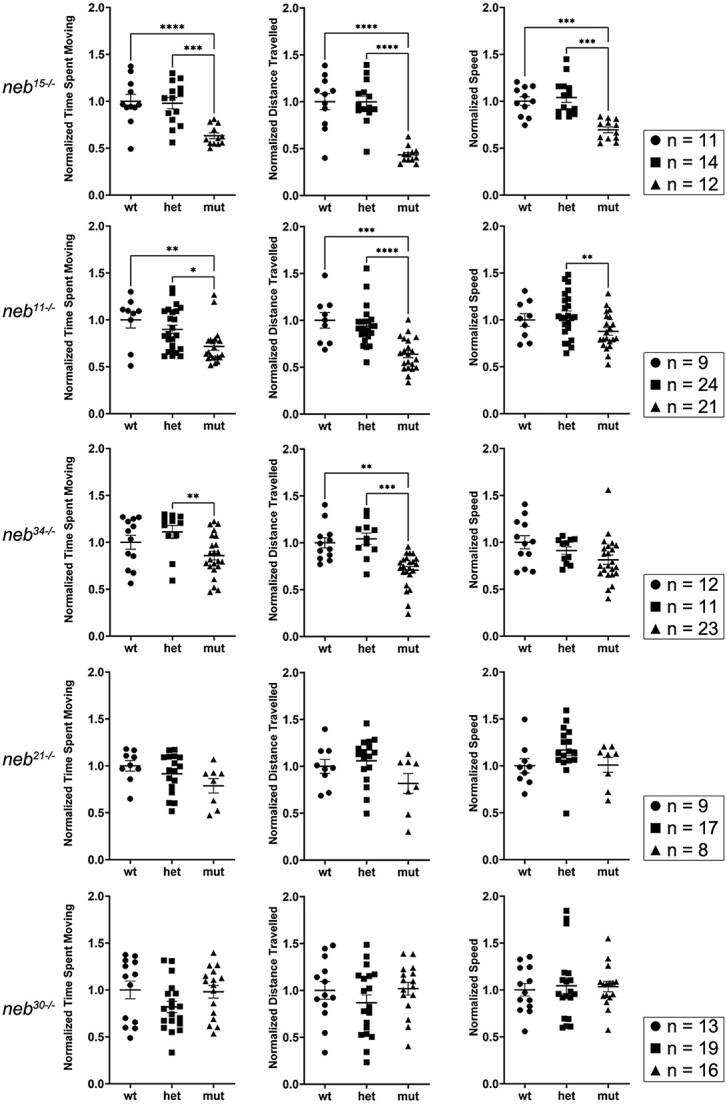

Swimming behaviour is defective in neb mutants. Muscle performance and function in neb mutants was assessed by tracking optovin-induced swimming of embryos at 7 dpf. Graphs showing time spent moving, distance travelled, and speed for each zebrafish line. The nonsense mutants neb¹⁵ and neb¹¹ showed significantly shorter time swimming, distance travelled, and lower speed compared to their siblings. The splice mutants neb³⁴ and neb²¹, with mutations in SR region, also showed significantly shorter time spent swimming. The motor behaviour of the splice mutant neb³⁰ is not significantly different from that recorded for its siblings. Graphs display values normalized to wt (mean ± SEM). Asterisks indicate p-values (* ≤ 0.05; ** ≤ 0.01; *** ≤ 0.001; **** ≤ 0.0001). See Supplemental Table 3 for descriptive statistics.
